KSZ8993MI - Microchip

Description: Ethernet Switch 3-Port 100Mbps 128-Pin PQFP Tray

Download KSZ8993MI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8993MI - Microchip - PCB symbol
click to zoom
PCB Footprints

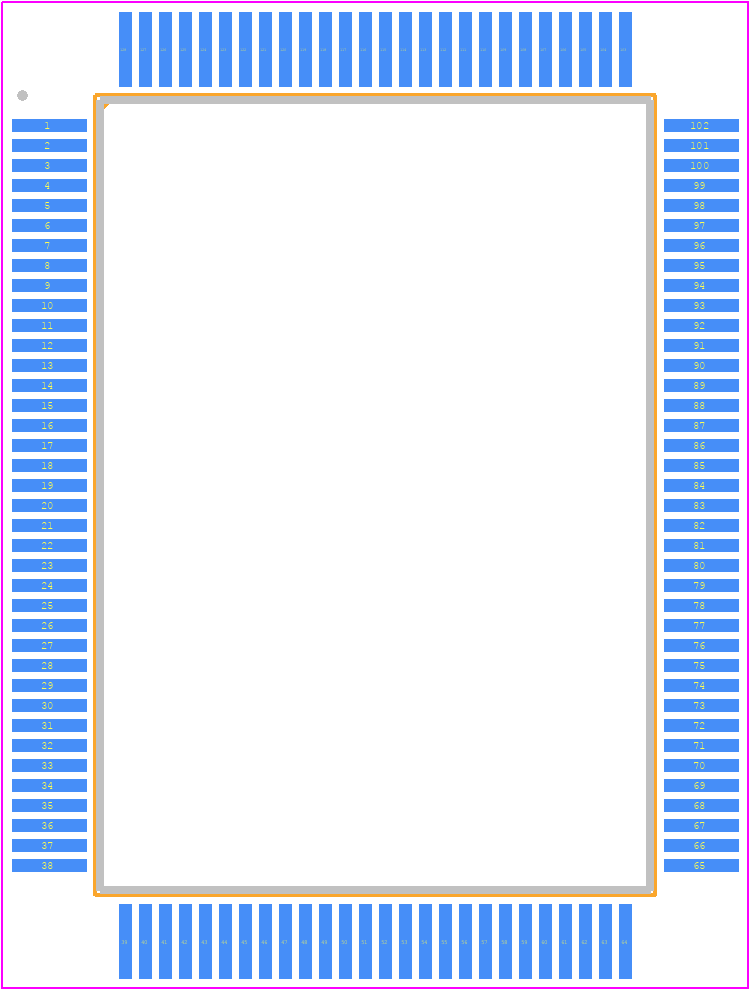

KSZ8993MI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-PIN PQFP (MM)
click to zoom
3D Models
KSZ8993MI - Microchip - 3D model - Quad Flat Packages - 128-PIN PQFP (MM)
click to zoom

KSZ8993MI Details

  • Manufacturer Part Number:

    KSZ8993MI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FQFP, QFP128,.68X.91,20

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8993MI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8993MI is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8993MI can be configured for a specific network topology using the SPI interface to program the device's registers. The specific configuration will depend on the network topology and the requirements of the application.
  • The maximum cable length supported by the KSZ8993MI is 100 meters, which is the standard for Ethernet cables. However, the actual cable length may vary depending on the specific application and the quality of the cables used.
  • To troubleshoot issues with the KSZ8993MI, check the device's status registers, verify the configuration and programming of the device, and use diagnostic tools such as packet sniffers and network analyzers to identify the source of the problem.
  • Yes, the KSZ8993MI can be used in industrial or automotive applications, but it may require additional testing and validation to ensure that it meets the specific requirements of the application, such as operating temperature range, vibration, and electromagnetic compatibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8993MI Overview

Use the download button to access the KSZ8993MI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ89, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
