The recommended PCB layout for the KSZ8995XA involves placing the device near the RJ-45 connector, using a solid ground plane, and minimizing the length of the traces between the device and the magnetics. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for the signals.
The KSZ8995XA can be configured for a specific network topology using the SPI interface. The device can be configured for different network topologies such as star, bus, or tree topologies by setting the appropriate registers. The Microchip Technology Inc. application note AN2054 provides more information on configuring the KSZ8995XA for different network topologies.
The maximum cable length supported by the KSZ8995XA is 100 meters, which is the standard for Ethernet cables. However, the actual cable length may vary depending on the quality of the cable and the environment in which it is used.
To troubleshoot issues with the KSZ8995XA, first check the power supply voltage and ensure that it is within the recommended range. Then, check the clock signal and ensure that it is stable and within the recommended frequency range. Use a logic analyzer or oscilloscope to check the signal integrity and timing. Also, check the device's registers and status bits to identify any errors or issues.
Yes, the KSZ8995XA can be used in industrial or automotive applications. The device is designed to operate in a wide temperature range of -40°C to 85°C, making it suitable for use in harsh environments. However, additional testing and validation may be required to ensure that the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KSZ8995XA Overview

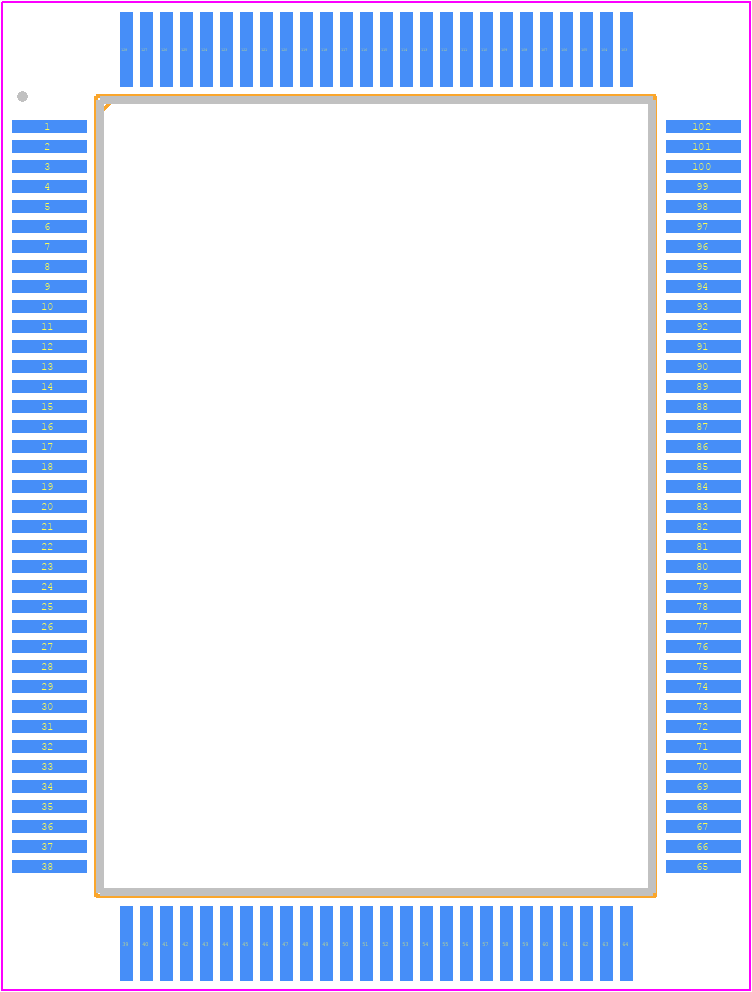

Use the download button to access the KSZ8995XA schematic symbol, PCB footprint, and 3D model.
