KSZ8999I - Microchip

Description: Microchip KSZ8999I, 9-Port Ethernet Switch, MII/SNI, 10 Mbit/s, 100 Mbit/s 2.1 V, 3.3 V, 208-Pin PQFP

Download KSZ8999I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8999I - Microchip - PCB symbol
click to zoom
PCB Footprints

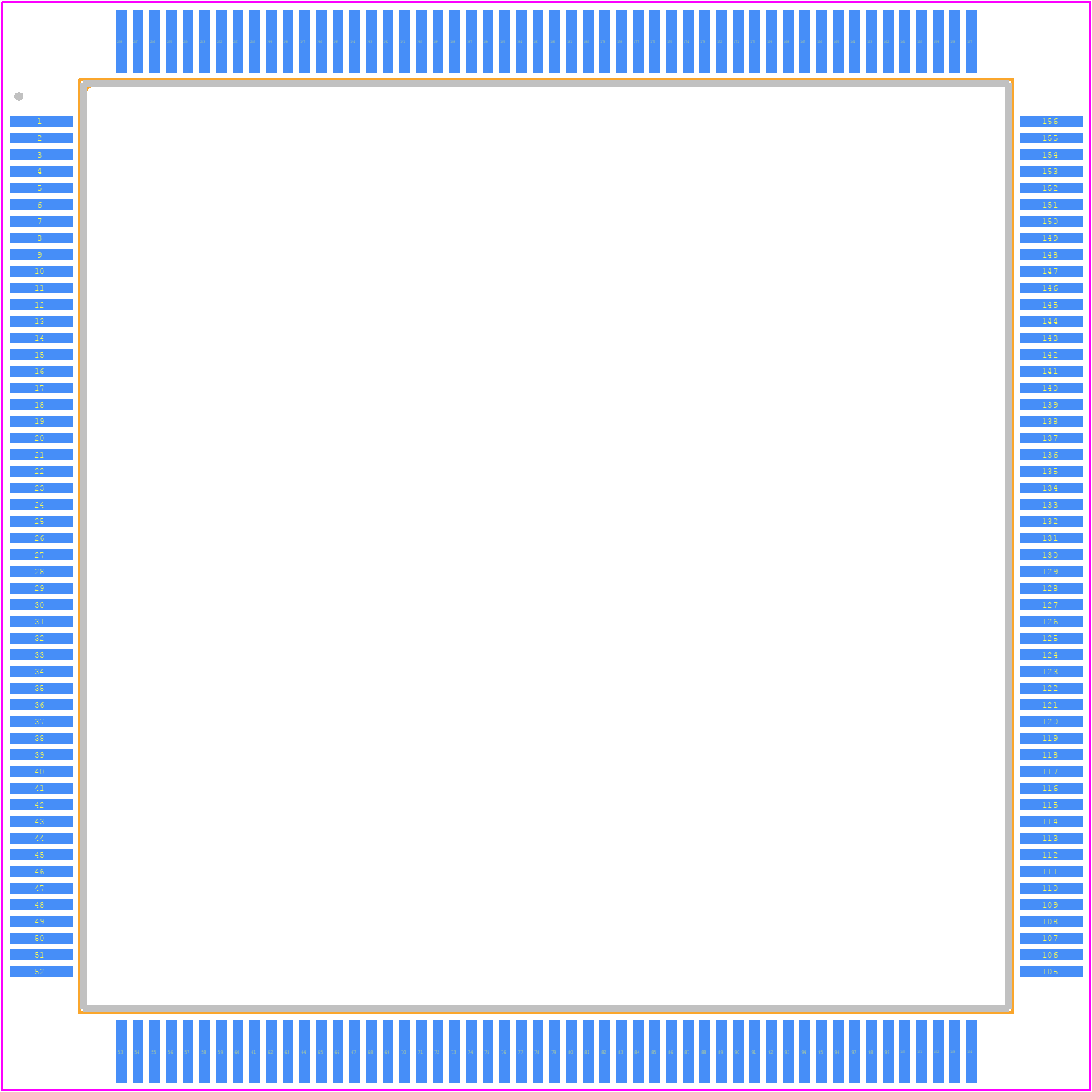

KSZ8999I - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - KSZ8999I 208
click to zoom
3D Models
KSZ8999I - Microchip - 3D model - Quad Flat Packages - KSZ8999I 208
click to zoom

KSZ8999I Details

  • Manufacturer Part Number:

    KSZ8999I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFP-208

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    208

  • Number of Transceivers:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.8 mm

  • Supply Voltage-Nom:

    2.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

KSZ8999I Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8999I is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8999I can be configured for a specific network topology using the SPI interface. The device can be configured for different network topologies such as star, bus, or tree by setting the appropriate registers and pins.
  • The maximum cable length supported by the KSZ8999I is 100 meters for Category 5e or higher cables, and 80 meters for Category 3 or lower cables.
  • To troubleshoot issues with the KSZ8999I, check the device's status registers, verify the power supply and clock signals, and use a logic analyzer or oscilloscope to debug the device's signals.
  • Yes, the KSZ8999I can be used in industrial or automotive applications, but it requires additional testing and validation to ensure it meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8999I Overview

Use the download button to access the KSZ8999I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ89, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
