KSZ9021RLI - Microchip

Description: Microchip KSZ9021RLI Ethernet Transceiver, 1000BASE-T, 100BASE-TX, 10BASE-T, IEEE 802.3, 1000Mbit/s 1.2 V, 64-Pin LQFP

Download KSZ9021RLI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ9021RLI - Microchip - PCB symbol
click to zoom
PCB Footprints

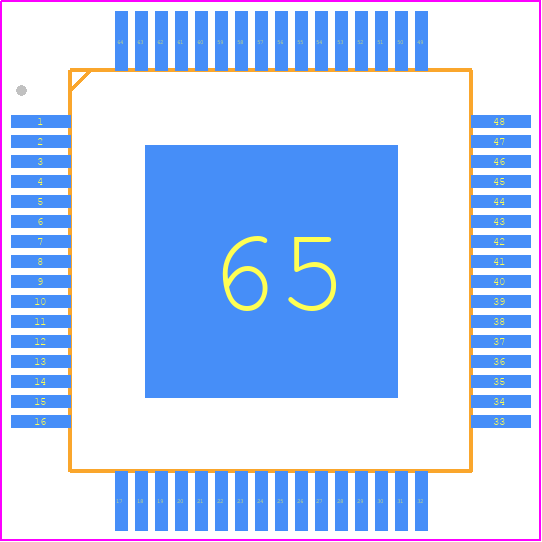

KSZ9021RLI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 64 LEAD LQFP 10X10mm
click to zoom
3D Models
KSZ9021RLI - Microchip - 3D model - Quad Flat Packages - 64 LEAD LQFP 10X10mm
click to zoom

KSZ9021RLI Details

  • Manufacturer Part Number:

    KSZ9021RLI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    LQFP-64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

KSZ9021RLI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ9021RLI is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ9021RLI can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the TXEN and RXEN pins to toggle between transmit and receive modes. For full-duplex operation, set the TXEN pin high and the RXEN pin low.
  • The maximum cable length supported by the KSZ9021RLI is 100 meters, assuming a Category 5e or higher cable.
  • The KSZ9021RLI has a built-in power management feature that can be controlled through the PMEDEN pin. To implement power management, connect the PMEDEN pin to a GPIO pin on the host processor and use software to control the power state of the device.
  • The recommended clock frequency for the KSZ9021RLI is 25 MHz, but it can operate at frequencies up to 50 MHz.
