KSZ9031RNXIC-TR - Microchip

Description: Ethernet ICs GbE Physical Layer Transceiver with RGMII

Download KSZ9031RNXIC-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

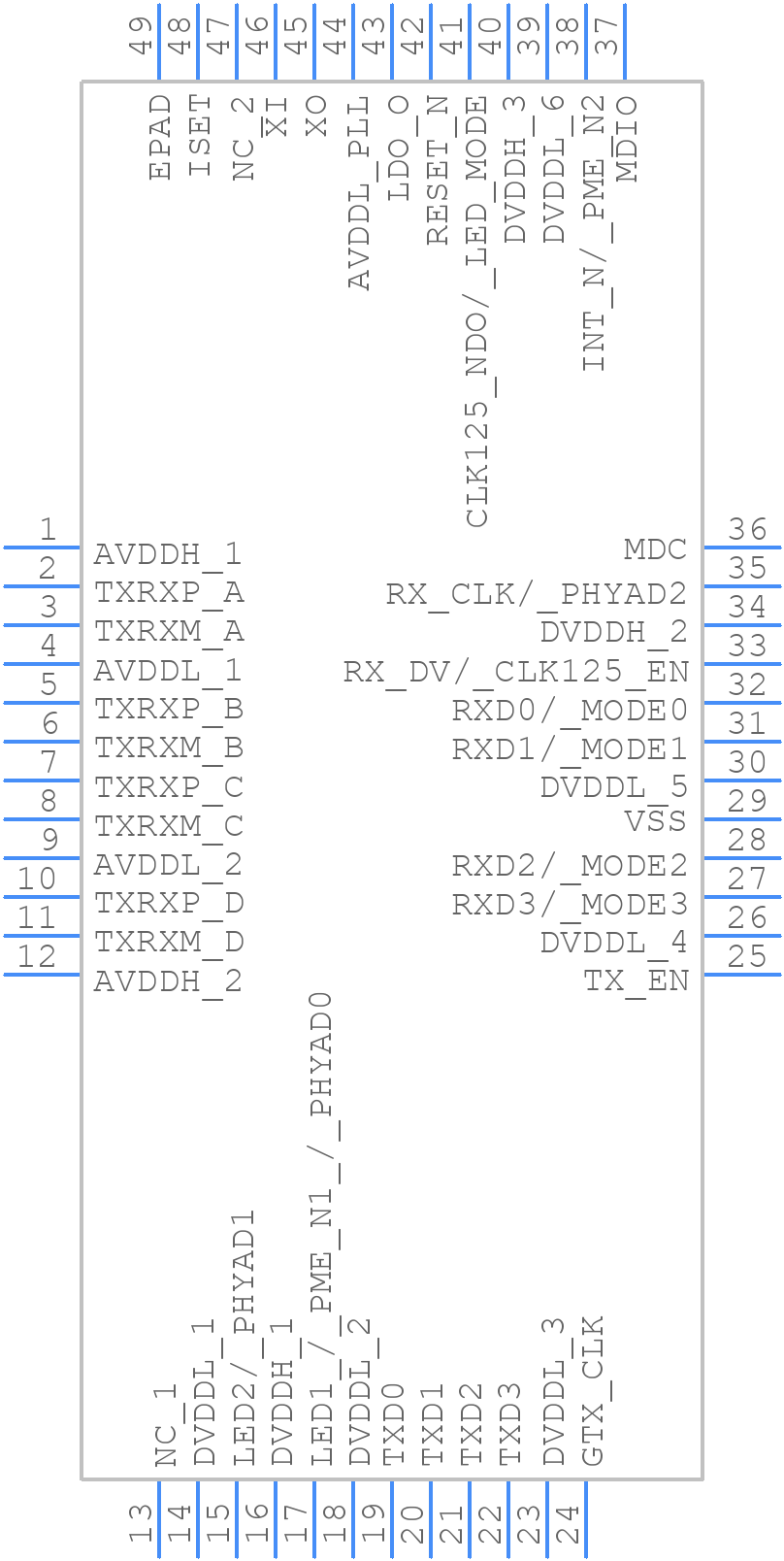

Symbol
KSZ9031RNXIC-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ9031RNXIC-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Pin (7mm x 7mm) QFN
click to zoom
3D Models
KSZ9031RNXIC-TR - Microchip - 3D model - Quad Flat No-Lead - 48-Pin (7mm x 7mm) QFN
click to zoom

KSZ9031RNXIC-TR Details

  • Manufacturer Part Number:

    KSZ9031RNXIC-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Mainland China, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

KSZ9031RNXIC-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ9031RNXIC-TR can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ9031RNXIC-TR can be configured for specific network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device's registers and generate the corresponding code.
  • The KSZ9031RNXIC-TR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad connected to a ground plane or a heat sink. The device's thermal resistance (θJA) is 30°C/W.
  • To troubleshoot issues with the KSZ9031RNXIC-TR, consult the device's datasheet and application notes. Microchip also provides a troubleshooting guide (AN-2055) that covers common issues and their solutions. Additionally, engineers can use the Microchip LANCheck tool to diagnose and debug network issues.
  • The KSZ9031RNXIC-TR has a typical power consumption of 350 mW in 1000BASE-T mode. The device has multiple power-down modes, including a low-power idle mode and a shutdown mode, which can be controlled through the device's registers or external pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ9031RNXIC-TR Overview

Use the download button to access the KSZ9031RNXIC-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ90, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
