KSZ9031RNXVB-VAO - Microchip

Description: IC TRANSCEIVER FULL 4/4 48FN

Download KSZ9031RNXVB-VAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

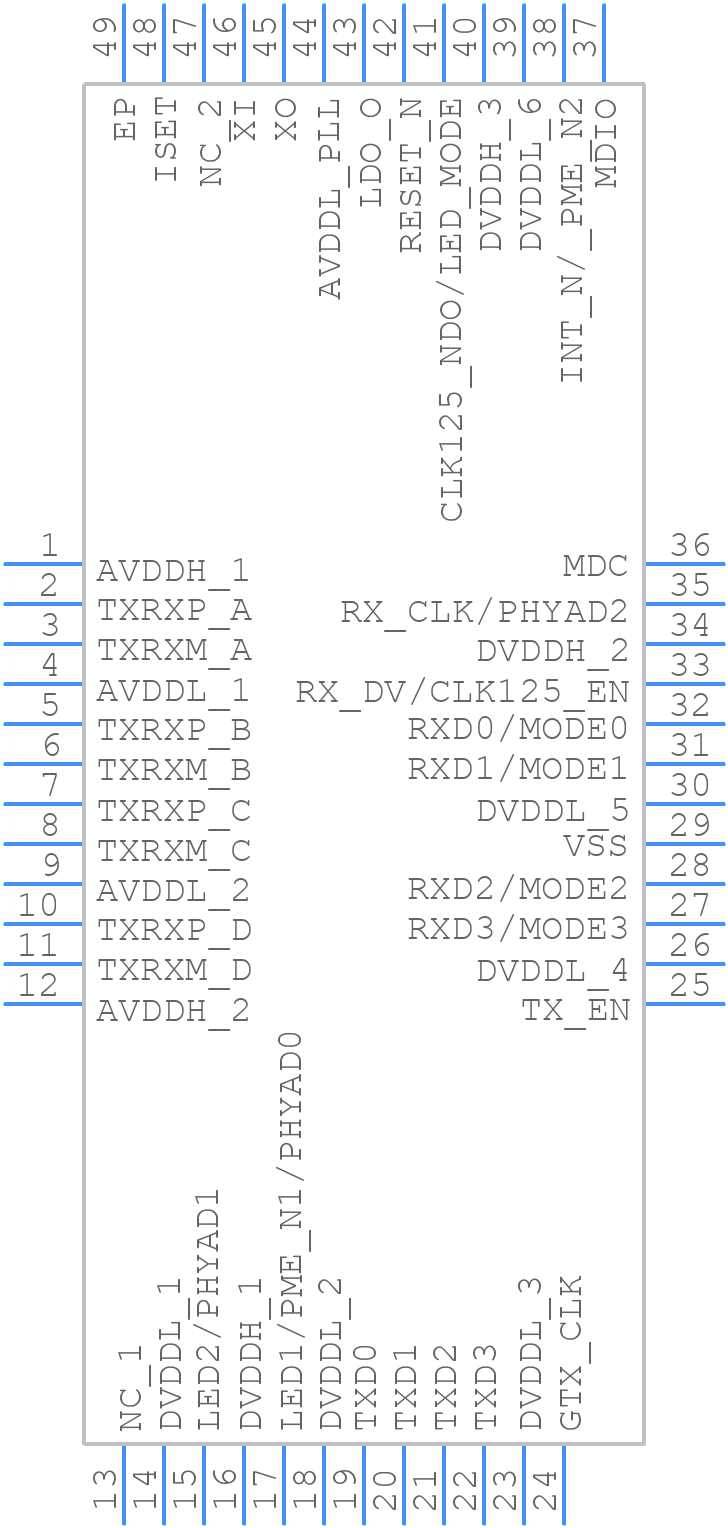

Symbol
KSZ9031RNXVB-VAO - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ9031RNXVB-VAO - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN48_7X7(Wettable flank) with 5.05x5.05mm
click to zoom
3D Models
KSZ9031RNXVB-VAO - Microchip - 3D model - Quad Flat No-Lead - VQFN48_7X7(Wettable flank) with 5.05x5.05mm
click to zoom

KSZ9031RNXVB-VAO Details

  • Manufacturer Part Number:

    KSZ9031RNXVB-VAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2017-05-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ9031RNXVB-VAO Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ9031RNXVB-VAO can be found in the Microchip application note AN-2053, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ9031RNXVB-VAO can be configured for different network topologies using the Microchip LANCheck online tool or the KSZ9031RNXVB-VAO evaluation board. The tool provides a graphical user interface to configure the device for various network topologies, including star, bus, and ring configurations.
  • The KSZ9031RNXVB-VAO supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • Microchip provides a troubleshooting guide for the KSZ9031RNXVB-VAO, which covers common issues and their solutions. Additionally, the Microchip support team can be contacted for further assistance and debugging.
  • Yes, the KSZ9031RNXVB-VAO is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and harsh environment applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ9031RNXVB-VAO Overview

Use the download button to access the KSZ9031RNXVB-VAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ90, or try a keyword search, such as Network Interfaces
