KTD2026CEWE-TR - Kinetic Technologies

Description: LED Lighting Drivers

Download KTD2026CEWE-TR Model
Schematic
symbols

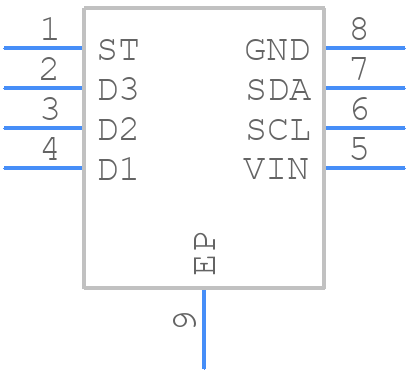

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KTD2026CEWE-TR - Kinetic Technologies PCB footprint - Small Outline No-lead - Small Outline No-lead - UTDFN1.5x1.5-8
click to zoom
3D Models
KTD2026CEWE-TR - Kinetic Technologies  - 3D model - Small Outline No-lead - UTDFN1.5x1.5-8
click to zoom

KTD2026CEWE-TR Details

  • Manufacturer Part Number:

    KTD2026CEWE-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    UTDFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Kinetic Technologies HK Ltd

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XDSO-N8

  • Length:

    1.5 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.06,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    1.5 mm

KTD2026CEWE-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, ensure good airflow and consider using a heat sink if the device is expected to operate at high temperatures or with high currents.
  • To ensure EMC and reduce EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering or shielding on the input and output lines. Additionally, follow good PCB design practices, such as separating analog and digital grounds and using decoupling capacitors.
  • The KTD2026CEWE-TR is designed to operate in industrial temperature ranges (-40°C to 85°C). However, the lifespan may vary depending on the specific application, operating conditions, and quality of the PCB assembly. In harsh environments, consider using conformal coating, potting, or other protective measures to ensure reliability.
  • Yes, the KTD2026CEWE-TR can be used in redundant or fault-tolerant system designs. However, it's essential to consider the specific requirements of your system, such as synchronization, monitoring, and failover mechanisms, to ensure seamless operation in the event of a failure.
  • Potential failure modes include overheating, overvoltage, and electrical overstress. To mitigate these, ensure proper thermal management, use overvoltage protection, and follow the recommended operating conditions and PCB design guidelines.
