The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, ensure good airflow and consider using a heat sink or thermal pad to keep the junction temperature below 125°C.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the KTD2026EWE-TR away from noise sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow good PCB layout practices, such as separating analog and digital grounds, and using a multi-layer PCB with a solid ground plane.
Operating the KTD2026EWE-TR beyond the recommended input voltage range may lead to reduced efficiency, increased heat generation, and potentially damage the IC. It is essential to ensure the input voltage remains within the specified range to maintain optimal performance and reliability.
To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and input current. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Yes, the input and output capacitors play a critical role in the KTD2026EWE-TR's performance. Use low-ESR capacitors with a value of 10uF to 22uF for the input and output. Place them close to the IC, with the input capacitor connected between the input pin and the ground pin, and the output capacitor connected between the output pin and the ground pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KTD2026EWE-TR Overview

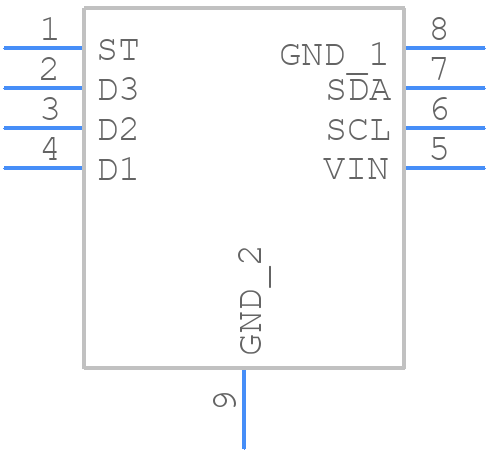

Use the download button to access the KTD2026EWE-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KTD20,
or try a keyword search, such as Display Drivers
