KTD2027EWE-TR - Kinetic Technologies

Description: LED Lighting Drivers 4-Channel RGBW Driver, I2C, 1.5x1.5mm TDFN

Download KTD2027EWE-TR Model

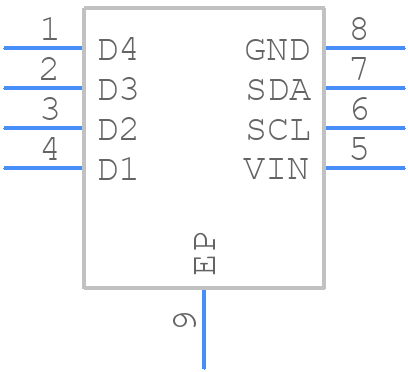

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KTD2027EWE-TR - Kinetic Technologies PCB footprint - Small Outline No-lead - Small Outline No-lead - UTDFN1.5x1.5-8
click to zoom
3D Models
KTD2027EWE-TR - Kinetic Technologies  - 3D model - Small Outline No-lead - UTDFN1.5x1.5-8
click to zoom

KTD2027EWE-TR Details

  • Manufacturer Part Number:

    KTD2027EWE-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    UTDFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Kinetic Technologies HK Ltd

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XDSO-N8

  • Length:

    1.5 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.06,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    1.5 mm

KTD2027EWE-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, ensure good airflow and consider using a heat sink or thermal pad to keep the junction temperature below 125°C.
  • To ensure EMC and reduce EMI, use a shielded enclosure, keep the KTD2027EWE-TR away from noise sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
  • Operating the KTD2027EWE-TR beyond the recommended operating conditions can lead to reduced reliability, decreased efficiency, and increased thermal stress. This may result in premature failure, reduced lifespan, or even catastrophic failure. Always operate within the recommended specifications to ensure optimal performance and reliability.
  • To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • When conformal coating or potting the KTD2027EWE-TR, ensure that the coating material is compatible with the device's plastic package and does not compromise its thermal performance. Follow the manufacturer's guidelines for coating and curing, and avoid applying excessive pressure or stress to the device.
