KTD2041EUAC-TR footprint, schematic symbol and 3D model by Kinetic Technologies

KTD2041EUAC-TR - Kinetic Technologies

Description: LED Lighting Driver ICs 9-Channel IR LED Driver with Buck Regulator and I2C Interface 2.7V to 5.5V Input Voltage Operating Range • Nine High-Precision Current Sinks  LED Current Up to 32mA per Channel  ±1% Typical Current Matching  ±2% Typical Current Accuracy at 32mA  6-bit Current Dimming Control with I2C  Independent On/Off Control  Supports both Independent and Global Dimming • High Efficiency Buck Regulator  Integrated 200mΩ / 100mΩ High / Low-Side FET  Adaptive On-Time Control with

Download KTD2041EUAC-TR Model

Schematic
symbols

PCB
footprints

3D
models

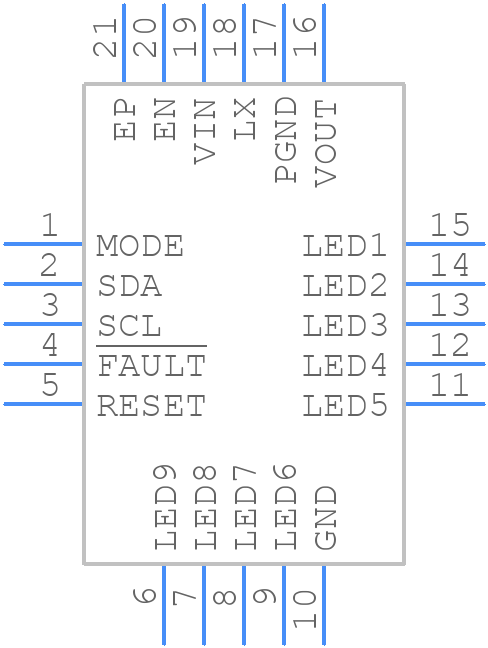

Symbol

click to zoom

PCB Footprints

KTD2041EUAC-TR - Kinetic Technologies PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UQFN33-20 (3.00mm x 3.00mm x 0.55mm....

click to zoom

3D Models

KTD2041EUAC-TR - Kinetic Technologies - 3D model - Quad Flat No-Lead - UQFN33-20 (3.00mm x 3.00mm x 0.55mm....

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for KTD2041EUAC-TR
Part Number KTD2041EUAC-TR
Manufacturer Kinetic Technologies
Pin Count 21
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - UQFN33-20 (3.00mm x 3.00mm x 0.55mm....
Released Date May 5, 2025
Last Modified Date May 5, 2025 9:56 AM UTC
Pinout / Pin List Click Here (Member Only)

KTD2041EUAC-TR Details

Manufacturer Part Number:
KTD2041EUAC-TR
Manufacturer:
Kinetic Technologies HK Ltd

Trust Checks

Community Provided

System Verified

Community Approved

KTD2041EUAC-TR Overview

Use the download button to access the KTD2041EUAC-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KTD20, or try a keyword search, such as Power Bipolar Transistors
