The datasheet doesn't provide a specific layout recommendation. However, it's essential to follow general guidelines for high-power switching converters. Keep the power components (e.g., FETs, inductor) close together, use a solid ground plane, and ensure good thermal conduction to the PCB. A 4-layer PCB with a dedicated power plane and thermal vias can help.
Choose an inductor with a high saturation current rating (>2A), low DCR (<100mΩ), and a suitable inductance value (e.g., 1.5μH to 3.3μH). Consider the inductor's physical size, core material, and operating frequency (500kHz for KTD2058EUAC-TR). Consult the inductor manufacturer's datasheet and application notes for guidance.
While the datasheet specifies a maximum junction temperature (TJ) of 125°C, the maximum ambient temperature depends on the system's thermal design and airflow. As a general guideline, assume a maximum ambient temperature of 85°C to ensure reliable operation. However, this may vary depending on the specific application and thermal management.
The KTD2058EUAC-TR is a commercial-grade component. While it's suitable for many industrial and consumer applications, it may not meet the stringent requirements of high-reliability or automotive applications. For such applications, consider using components with specific automotive or high-reliability certifications (e.g., AEC-Q100, MIL-STD-883).
Follow general EMC design guidelines for switching converters. Use a shielded inductor, keep the layout compact, and minimize loop areas. Add input and output filters (e.g., LC filters) to reduce EMI. Ensure proper grounding and decoupling of the converter. Consult the datasheet and application notes for specific guidance on EMC considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KTD2058EUAC-TR Overview

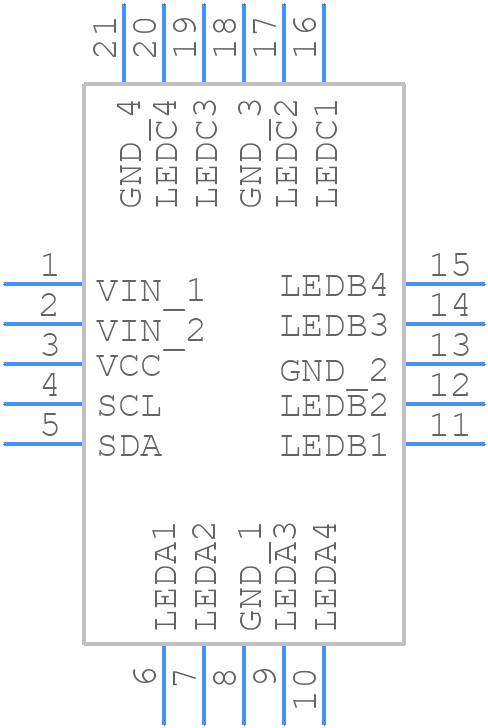

Use the download button to access the KTD2058EUAC-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KTD20,
or try a keyword search, such as Display Drivers
