The datasheet doesn't provide a specific layout recommendation. However, it's essential to follow general guidelines for high-current, high-frequency PCB design. Keep the power traces short and wide, use a solid ground plane, and ensure good thermal conduction to the surrounding components and PCB.
Choose an inductor with a high saturation current rating (>6A), low DCR (<10mΩ), and a suitable inductance value (e.g., 1-4.7μH) to minimize core losses. Consider the inductor's physical size, temperature rating, and compatibility with the PCB layout.
While the datasheet specifies a maximum junction temperature (TJ) of 125°C, the maximum ambient temperature depends on the specific application and cooling conditions. As a general guideline, ensure the ambient temperature is below 85°C to maintain a safe margin.
The KTD2060EUAC-TR is an industrial-grade component, but it may not meet the specific requirements of high-reliability or automotive applications. Check the component's AEC-Q100 qualification, PPAP documentation, and other relevant standards before using it in such applications.
Follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and adding filtering components (e.g., ferrite beads, capacitors) to reduce EMI. Ensure the converter is properly shielded, and consider using a metal can or shielded inductor to minimize radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KTD2060EUAC-TR Overview

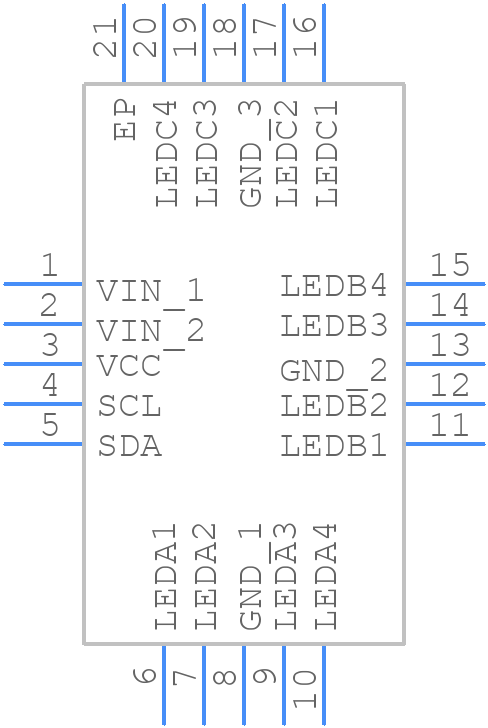

Use the download button to access the KTD2060EUAC-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KTD20,
or try a keyword search, such as Display Drivers
