KTDMAG4B832BGIBAT - SMARTsemi

Description: 16Gb DDR4 SDRAM 2Gbx8 78-FBGA Industrial Temp

Download KTDMAG4B832BGIBAT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KTDMAG4B832BGIBAT model

Email notifications will be applied after download.

Send part feedback

Symbol

KTDMAG4B832BGIBAT - SMARTsemi - PCB symbol

PCB Footprints

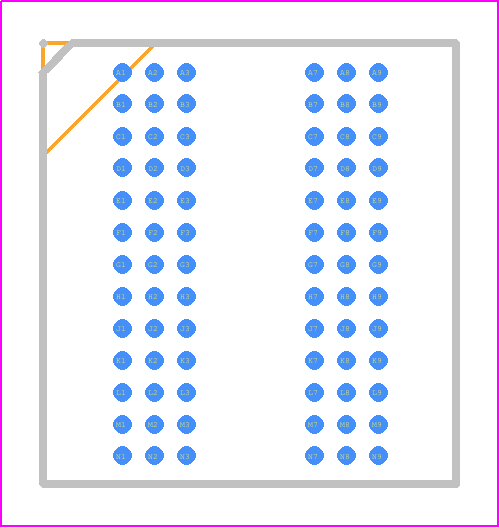

KTDMAG4B832BGIBAT - SMARTsemi PCB footprint - BGA - BGA - 78-BALL (10.3x11.0 mm)

3D Models

KTDMAG4B832BGIBAT - SMARTsemi - 3D model - BGA - 78-BALL (10.3x11.0 mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for KTDMAG4B832BGIBAT
Part Number KTDMAG4B832BGIBAT
Manufacturer SMARTsemi
Pin Count 78
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 78-BALL (10.3x11.0 mm)
Released Date Oct 8, 2022
Last Modified Date Aug 21, 2023 6:26 PM UTC
Pinout / Pin List Click Here (Member Only)

KTDMAG4B832BGIBAT Details

Manufacturer Part Number:
KTDMAG4B832BGIBAT
Manufacturer:
SmartSemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

KTDMAG4B832BGIBAT Overview

Use the download button to access the KTDMAG4B832BGIBAT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KTDMA, or try a keyword search, such as Visible LEDs
