KUSBVX-AS2N-B-1 - Kycon

Description: USB Connectors DUAL VERT MT USB A S OCKET BLK GLD FLASH

Download KUSBVX-AS2N-B-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KUSBVX-AS2N-B-1 - Kycon - PCB symbol
click to zoom
PCB Footprints

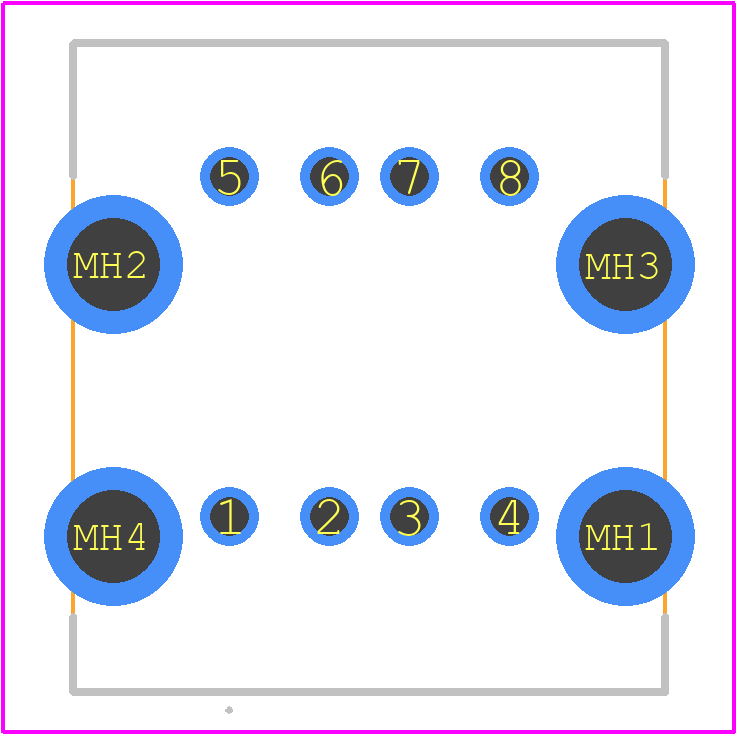

KUSBVX-AS2N-B-1 - Kycon PCB footprint - Other - Other - KUSBVX-AS2N-B-1-2
click to zoom
3D Models
KUSBVX-AS2N-B-1 - Kycon - 3D model - Other - KUSBVX-AS2N-B-1-2
click to zoom

KUSBVX-AS2N-B-1 Details

  • Manufacturer Part Number:

    KUSBVX-AS2N-B-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Kycon Inc

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

KUSBVX-AS2N-B-1 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the KUSBVX-AS2N-B-1 connector is 1,500 to 2,000 cycles, depending on the application and environmental conditions.
  • Yes, the KUSBVX-AS2N-B-1 connector is designed to support high-speed USB applications up to 480 Mbps.
  • The operating temperature range for the KUSBVX-AS2N-B-1 connector is -20°C to 80°C (-4°F to 176°F).
  • Yes, the KUSBVX-AS2N-B-1 connector is RoHS and REACH compliant, making it suitable for use in environmentally friendly and sustainable designs.
  • The recommended torque for the KUSBVX-AS2N-B-1 connector is 0.5 to 1.5 N·m (4 to 12 in-lbs).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KUSBVX-AS2N-B-1 Overview

Use the download button to access the KUSBVX-AS2N-B-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KUSBV, or try a keyword search, such as Telecom and Datacom Connectors
