KUSBX-AS1N9-2-BL30 - Kycon

KUSBX-AS1N9-2-BL30 Details

• Manufacturer Part Number:

  KUSBX-AS1N9-2-BL30

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Kycon Inc

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  SOLDERABLE RETENTION CLIPS

• Body Breadth:

  0.28 inch

• Body Depth:

  0.654 inch

• Body Length:

  0.571 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  USB CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  50 mΩ

• Contact Style:

  USB SER A FLAT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  100VAC V

• Durability:

  5000 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• MIL Conformance:

  NO

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

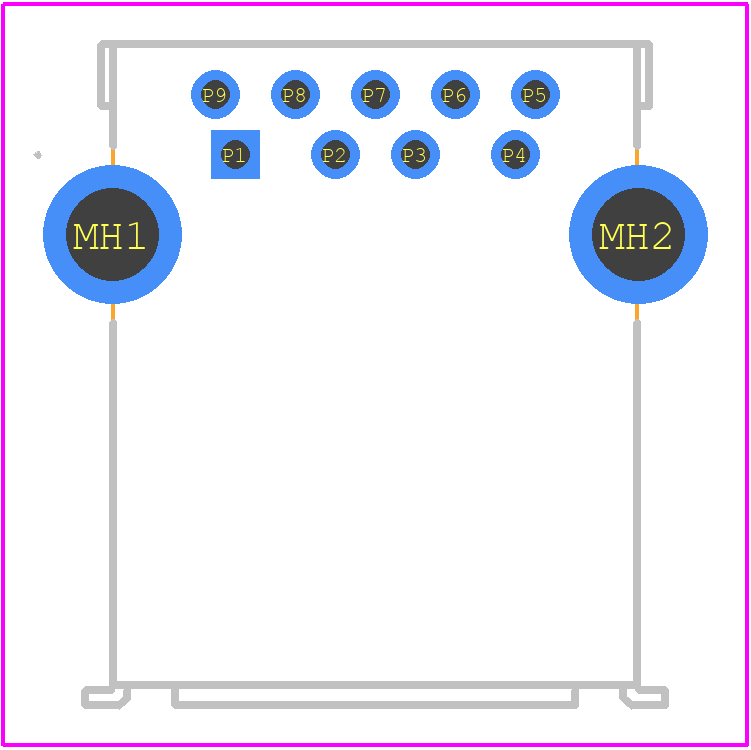

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.4986 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.8 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  BRASS

• Terminal Length:

  0.122 inch

• Terminal Pitch:

  2.0066 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0
