Part Image

KX220-1072 - Kionix

Description: MEMS ACCELEROMETERS, 40G; MEMS Sensor Output:Analogue; Measurement Axis:X, Y, Z; Acceleration Range:± 40g; Supply Voltage Min:1.8V; Supply Voltage Max:3.6V; Sensor Case Style:LGA; No. of Pins:10Pins; Sensitivity Typ:30mV/g; RoHS Compliant: Yes

Download KX220-1072 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

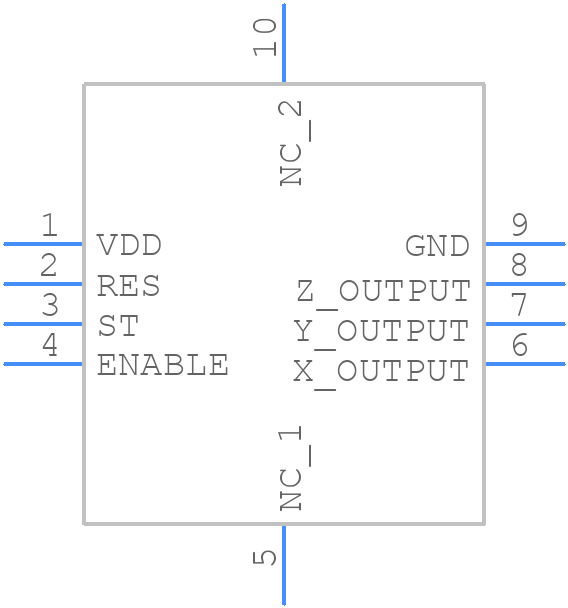

Symbol
KX220-1072 - Kionix - PCB symbol
click to zoom
PCB Footprints
KX220-1072 - Kionix PCB footprint - Other - Other - KX220-1072-2
click to zoom
3D Models
KX220-1072 - Kionix - 3D model - Other - KX220-1072-2
click to zoom

KX220-1072 Details

  • Manufacturer Part Number:

    KX220-1072

  • Manufacturer:

    Kionix Inc

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KX220-1072 Overview

Use the download button to access the KX220-1072 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KX220, or try a keyword search, such as Other Sensors/Transducers
