- Part Number L01-6363
- Manufacturer Amgis, LLC
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - L01-6363-2
- Released Date Apr 30, 2023
- Last Modified Date May 1, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
L01-6363 Details
-
Manufacturer Part Number:
L01-6363
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Amgis Toroids
-
Approvals:
CE; UL; VDE
-
Center Tap Feature 1:
NO
-
Center Tap Feature 2:
NO
-
Height:
37.5 mm
-
Input Voltage-Nom:
115 V
-
Length:
60 mm
L01-6363 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for L01-6363 is -40°C to +125°C, although it can withstand temperatures up to 150°C for short periods.
-
To ensure proper termination, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the pads. Avoid applying excessive force or heat, which can damage the component.
-
The maximum current rating for L01-6363 is 3.5A, although it's recommended to derate the current based on the operating temperature and frequency to ensure reliable operation.
-
Yes, L01-6363 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments. However, it's recommended to secure the component properly to the PCB to prevent mechanical stress.
-
To prevent ESD damage, handle L01-6363 with ESD-safe tools and equipment, and ensure that your workspace is ESD-protected. It's also recommended to use an ESD wrist strap or mat when handling the component.
Trust Checks
Community Provided
System Verified
Community Approved
L01-6363 Overview

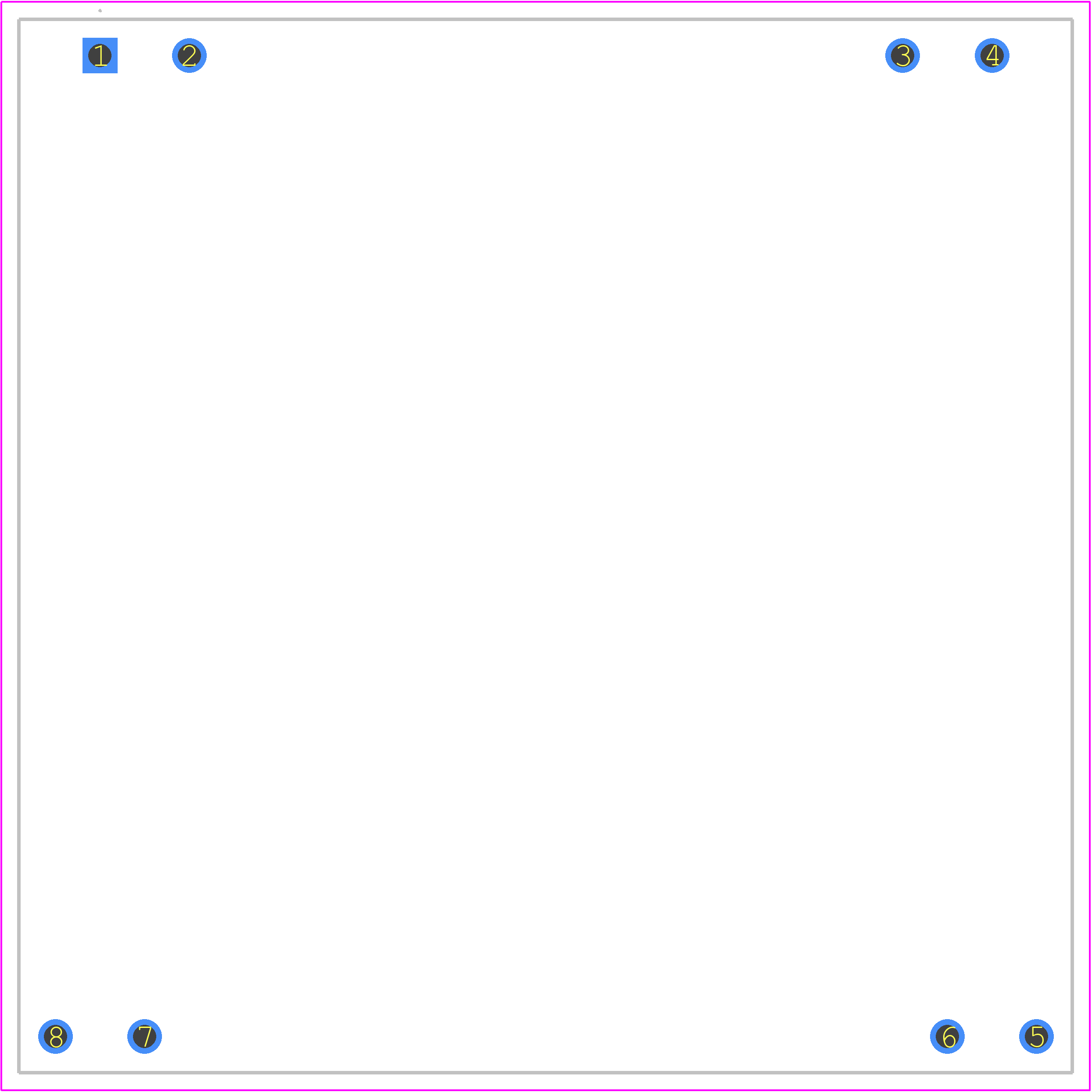

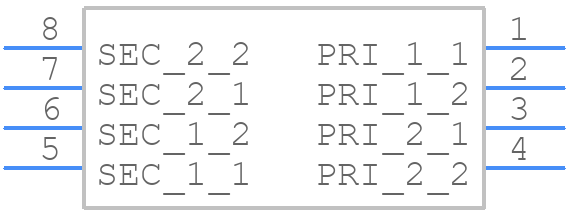

Use the download button to access the L01-6363 schematic symbol, PCB footprint, and 3D model.
