Tamura recommends a 4-layer PCB with a solid ground plane and a separate layer for the output voltage. The input and output capacitors should be placed close to the IC, and the output inductor should be placed away from the IC to minimize electromagnetic interference.
To ensure stable operation, it's essential to follow the recommended thermal design guidelines, including providing adequate heat sinking and airflow around the IC. Additionally, the input and output capacitors should be selected to maintain their capacitance over the entire operating temperature range.
The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the stability and performance of the converter.
While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the converter's efficiency, stability, and EMI performance.
To troubleshoot issues, start by verifying the PCB layout and component selection against the recommended design guidelines. Check for proper input and output capacitor selection, inductor value, and thermal design. Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or instability. Consult the datasheet and application notes for additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L01Z300S05 Overview

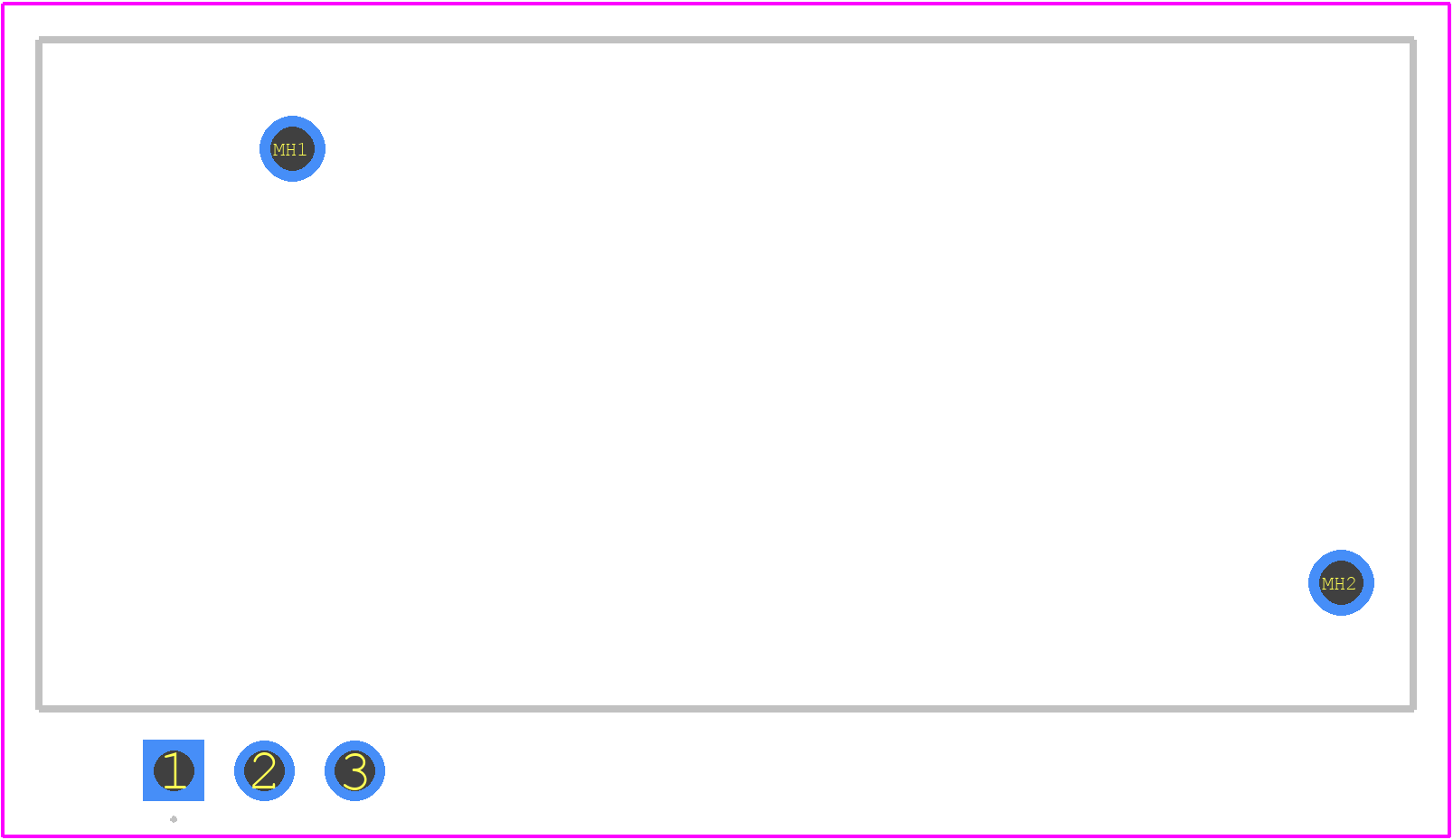

Use the download button to access the L01Z300S05 schematic symbol, PCB footprint, and 3D model.
