L01Z600S05 - Tamura

Description: SENSOR CURRENT HALL 600A AC/DC , Current Sensor 600A 1 Channel Hall Effect, Open Loop Bidirectional Module , 15mA , -10°C ~ 80°C

Download L01Z600S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

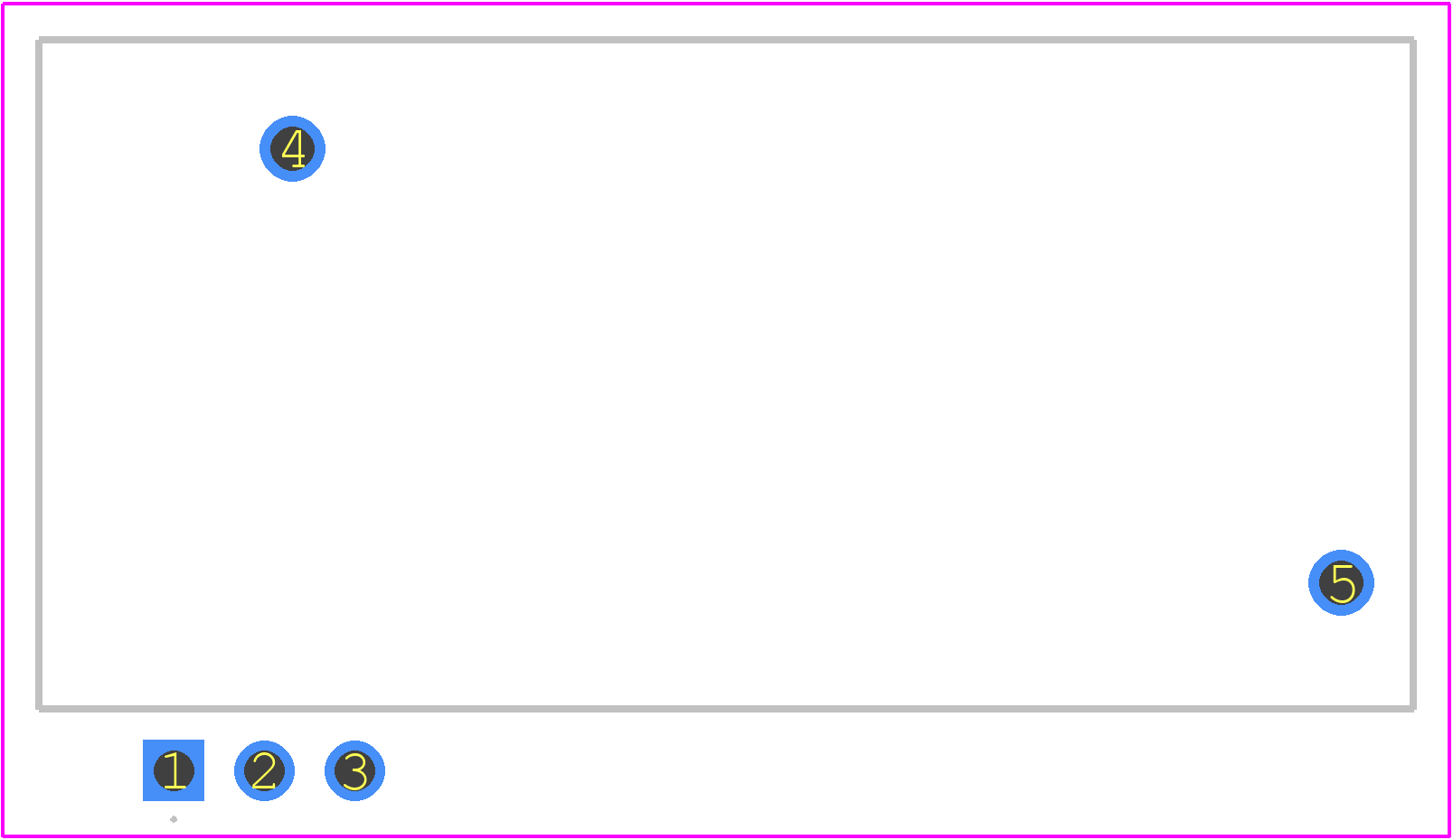

L01Z600S05 - Tamura PCB footprint - Other - Other - L01Z600S05-4
click to zoom
3D Models
L01Z600S05 - Tamura  - 3D model - Other - L01Z600S05-4
click to zoom

L01Z600S05 Details

  • Manufacturer Part Number:

    L01Z600S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-3

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    Tamura Corporation of America

  • Body Breadth:

    1.5 mm

  • Body Height:

    27 mm

  • Body Length or Diameter:

    38 mm

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Range:

    0.5-4.5V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.1 V

  • Supply Voltage-Min:

    4.9 V
