Tamura recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The datasheet provides a suggested PCB layout, but it's essential to consult with Tamura's application notes and experienced engineers for optimal design.
Proper thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's temperature and adjust the system design accordingly to prevent overheating.
Exceeding the maximum ratings can lead to reduced lifespan, decreased performance, or even permanent damage to the device. It's essential to operate the L08P150D15 within its specified ratings to ensure reliability and prevent premature failure.
Consult Tamura's application notes and troubleshooting guides for the L08P150D15. Perform a thorough analysis of the system design, PCB layout, and component selection to identify potential causes. Consider consulting with experienced engineers or Tamura's technical support team for assistance.
Yes, the L08P150D15 is a switching regulator, and as such, it can generate electromagnetic interference (EMI). Ensure proper PCB layout, use of shielding, and filtering to minimize EMI. Consult Tamura's application notes and relevant industry standards (e.g., CISPR 22) for guidance on EMI/EMC compliance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L08P150D15 Overview

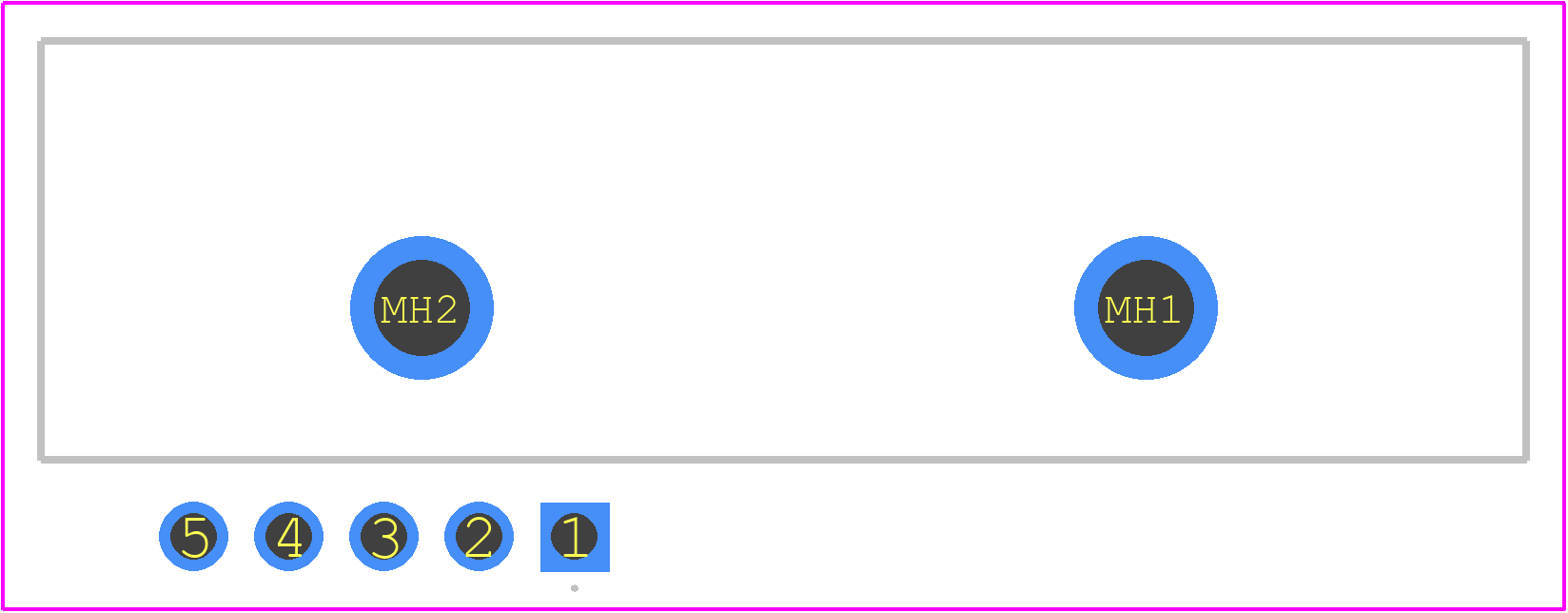

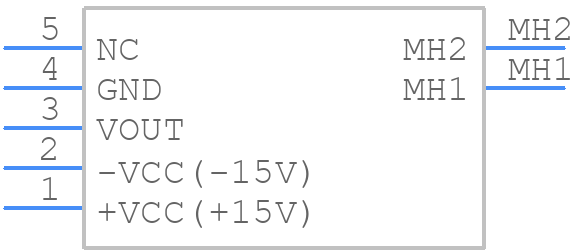

Use the download button to access the L08P150D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L08P1,
or try a keyword search, such as Other Signal Circuits
