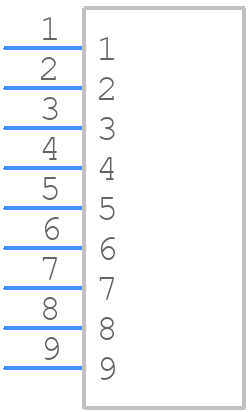

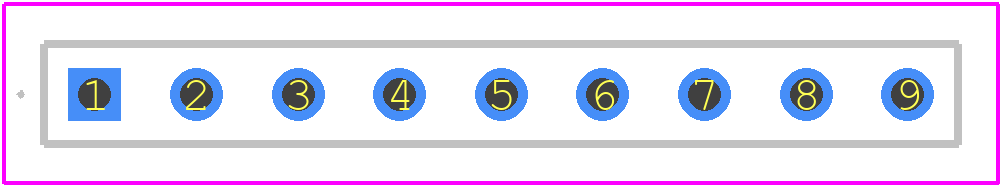

L091S102 - IRC / TT Electronics

L091S102 Details

• Manufacturer Part Number:

  L091S102

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SIP

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8533.21.00.50

• Manufacturer:

  TT Electronics Resistors

• YTEOL:

  0

• Construction:

  Conformal Coated

• First Element Resistance:

  1000 Ω

• Lead Length:

  3.556 mm

• Lead Spacing:

  2.54 mm

• Mounting Feature:

  THROUGH HOLE MOUNT

• Network Type:

  BUSSED

• Number of Elements:

  8

• Number of Functions:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Height:

  4.95 mm

• Package Length:

  22.86 mm

• Package Shape:

  RECTANGULAR PACKAGE

• Package Style:

  SIP

• Package Width:

  2.41 mm

• Packing Method:

  BULK

• Rated Power Dissipation (P):

  0.125 W

• Rated Temperature:

  70 °C

• Resistance:

  1000 Ω

• Resistor Type:

  ARRAY/NETWORK RESISTOR

• Size Code:

  9010

• Surface Mount:

  NO

• Technology:

  METAL GLAZE/THICK FILM

• Temperature Coefficient:

  100 ppm/°C

• Temperature Coefficient Tracking:

  50 ppm/°C

• Terminal Shape:

  FLAT

• Tolerance:

  2%

• Working Voltage:

  100 V
