Tamura recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 100nF) between VCC and GND to ensure stable operation and minimize noise.
To ensure reliable operation in high-temperature environments, Tamura recommends derating the output current and voltage according to the device's thermal derating curve, and ensuring good heat dissipation through proper PCB design and thermal management.
According to Tamura, the maximum allowable voltage transient on the input pins is ±500mV, with a duration of less than 100ns. Exceeding this limit may cause device malfunction or damage.
Yes, the L12P025D15 can be used in switching regulator applications, but Tamura recommends careful consideration of the device's switching frequency, output current, and voltage ripple to ensure reliable operation and minimize electromagnetic interference (EMI).
Tamura recommends storing the L12P025D15 in a dry, cool place with a temperature range of -20°C to 40°C and relative humidity below 80%. This helps prevent moisture absorption and ensures device reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L12P025D15 Overview

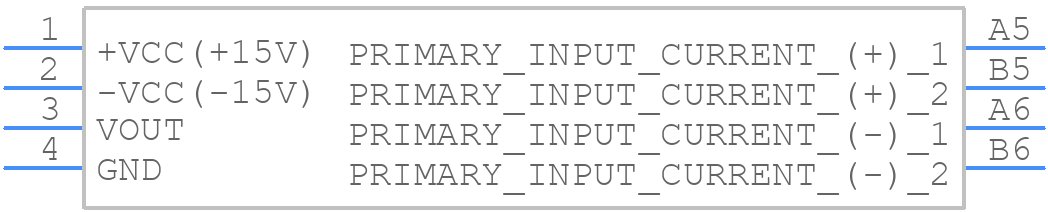

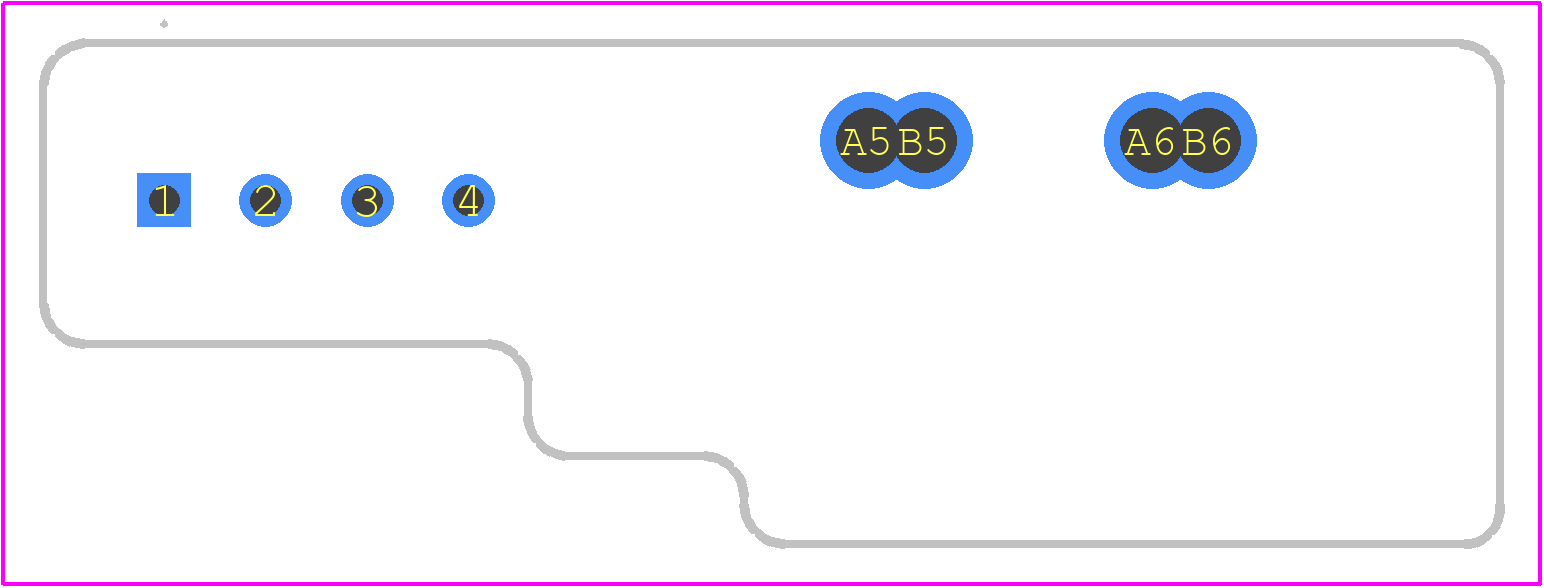

Use the download button to access the L12P025D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L12P0,
or try a keyword search, such as Other Sensors/Transducers
