A recommended PCB layout for the L18P050D15 would be to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure proper cooling, it's recommended to provide adequate airflow around the component, and to use a heat sink with a thermal conductivity of at least 1 W/m-K. The heat sink should be attached to the component using a thermal interface material with a thermal conductivity of at least 5 W/m-K.
The maximum allowed voltage deviation for the L18P050D15 is ±10% of the nominal input voltage. Exceeding this deviation may affect the component's performance and reliability.
The L18P050D15 is rated for operation up to 125°C. However, it's recommended to derate the component's power handling by 1% for every 1°C above 85°C to ensure reliable operation.
To troubleshoot issues with the L18P050D15, first check the input voltage and current to ensure they are within the recommended specifications. Next, verify that the component is properly cooled and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L18P050D15 Overview

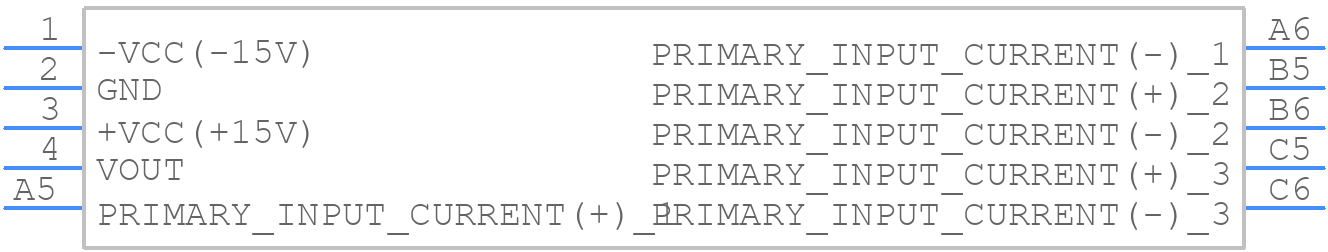

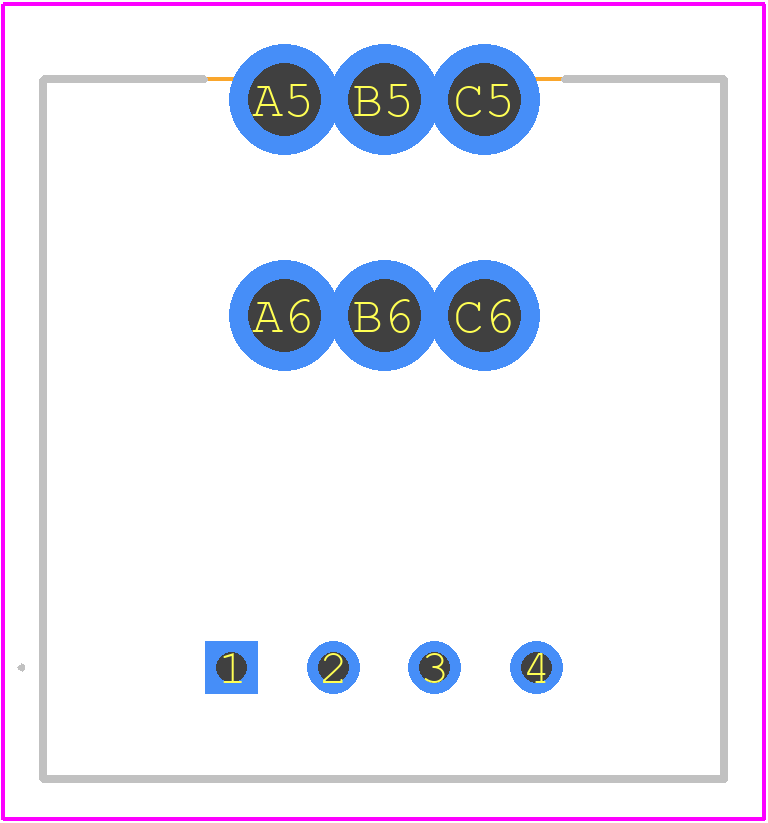

Use the download button to access the L18P050D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L18P0,
or try a keyword search, such as Other Sensors/Transducers
