L1MC-RGU3080500MP0 footprint, schematic symbol and 3D model by Lumileds

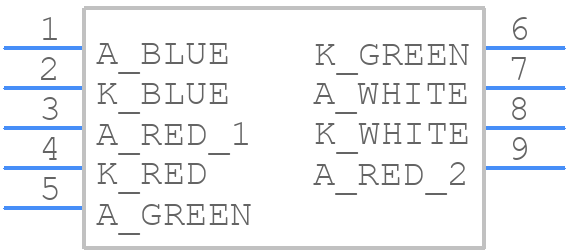

Symbol

PCB Footprints

3D Models

L1MC-RGU3080500MP0 Details

The recommended operating temperature range for the L1MC-RGU3080500MP0 is -40°C to 85°C, but it's essential to note that the device's performance and lifespan may be affected if operated outside this range.
To ensure proper thermal management, it's crucial to provide a heat sink or a thermal interface material (TIM) with a thermal resistance of ≤ 1.5 K/W. Additionally, the PCB should be designed to dissipate heat efficiently, and the device should be mounted correctly to minimize thermal resistance.
The maximum current rating for the L1MC-RGU3080500MP0 is 1000 mA, but it's recommended to operate the device at a current below 700 mA to ensure optimal performance and lifespan.
To handle the L1MC-RGU3080500MP0's sensitivity to ESD, it's essential to follow proper ESD handling procedures, such as using ESD-safe equipment, wearing ESD-protective clothing, and storing the devices in ESD-protective packaging.
The recommended storage condition for the L1MC-RGU3080500MP0 is in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of ≤ 60%. The devices should be stored in their original packaging or in a similar ESD-protective package.
