L1MC-RGU4080500MP0 footprint, schematic symbol and 3D model by Lumileds

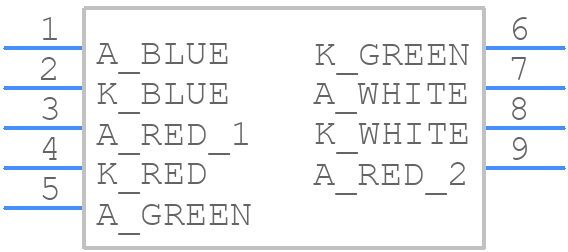

Symbol

PCB Footprints

3D Models

L1MC-RGU4080500MP0 Details

The recommended operating temperature range for the L1MC-RGU4080500MP0 is -40°C to 85°C.
Proper thermal management can be achieved by providing a heat sink or thermal interface material with a thermal resistance of ≤ 10°C/W, and ensuring good airflow around the device.
The maximum forward current rating for the L1MC-RGU4080500MP0 is 1000mA.
Handle the L1MC-RGU4080500MP0 by the edges, avoid touching the optical surface, and follow standard SMT assembly and soldering guidelines to prevent damage.
Store the L1MC-RGU4080500MP0 in a dry, cool place, away from direct sunlight, and in its original packaging or an anti-static bag.

Community Provided

System Verified

Community Approved

Use the download button to access the L1MC-RGU4080500MP0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like L1MC-, or try a keyword search, such as Visible LEDs
