L202011MS02G - LITTELFUSE

L202011MS02G Details

• Manufacturer Part Number:

  L202011MS02G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  8

• Actuator Length:

  0.2 inch

• Actuator Material:

  NYLON

• Actuator Type:

  HIGH TYPE

• Body Breadth:

  10.79 mm

• Body Color:

  BLACK

• Body Height:

  9.1 mm

• Body Length or Diameter:

  19.1 mm

• Center Contact Material:

  COPPER

• Contact (AC) Max Power Rating R Load:

  0.4VA@20VAC

• Contact (AC) Max Rating R Load:

  4A@125VAC

• Contact Current(AC)-Max:

  4 A

• Contact Current(DC)-Max:

  4 A

• Contact (DC) Max Rating R Load:

  4A@28VDC

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER

• Housing Material:

  NYLON

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  NYLON

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -30 °C

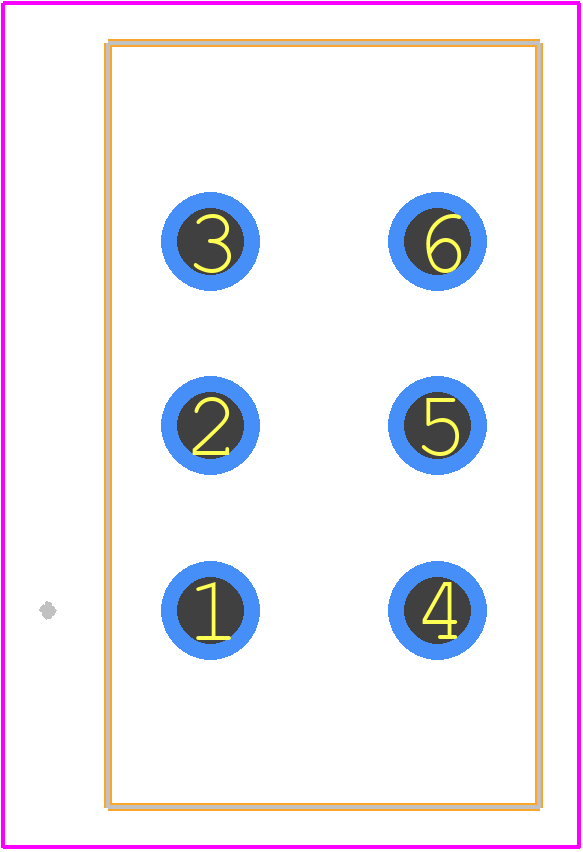

• PCB Hole Count:

  6

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Finish:

  GOLD OVER NICKEL

• Terminal Length:

  0.166 inch

• Terminal Material:

  COPPER

• Termination Type:

  SOLDER
