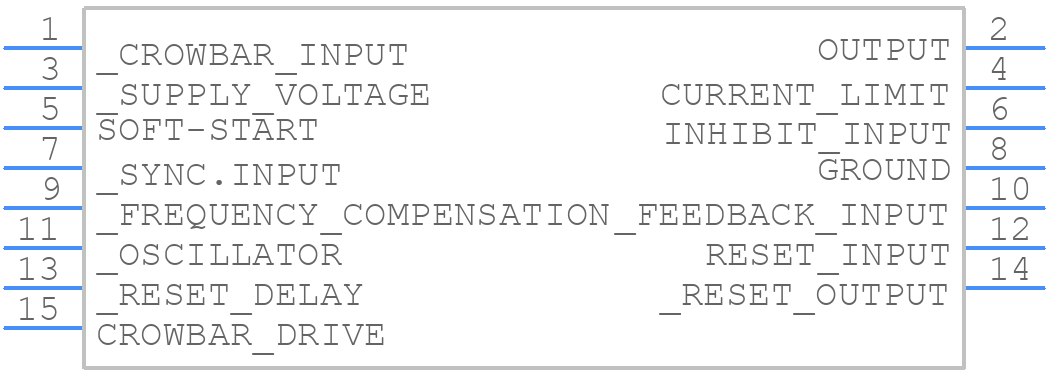

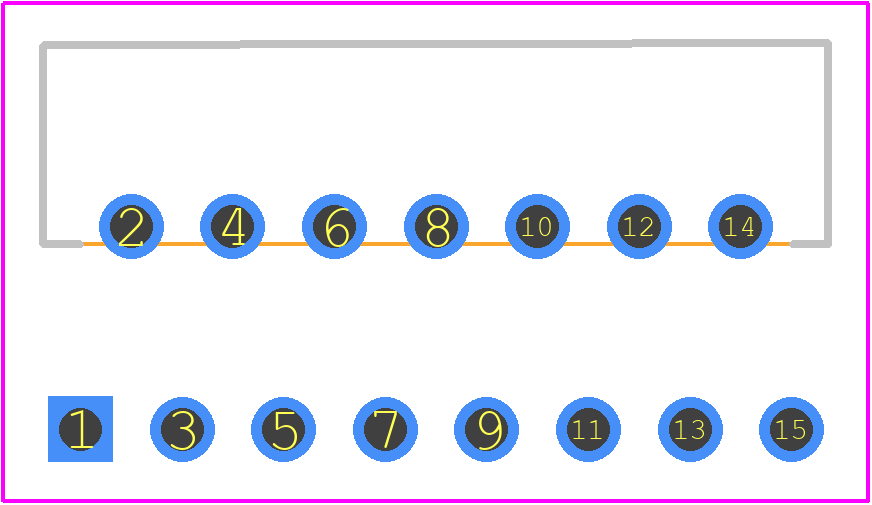

L296HT - STMicroelectronics

L296HT Details

• Manufacturer Part Number:

  L296HT

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  ZFM

• Package Description:

  PLASTIC, POWER PACK-15

• Pin Count:

  15

• Country Of Origin:

  Morocco

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  46 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  35 V

• JESD-30 Code:

  R-PZFM-T15

• JESD-609 Code:

  e3

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  7.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP15H,.1,.8TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  200 kHz

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  17.5 mm
