L3G4200D - STMicroelectronics

Description: L3G4200D, Gyroscope, 3-Axis, Serial-I2C, Serial-SPI 2.4 → 3.6 V, 16-Pin LGA-16

Download L3G4200D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

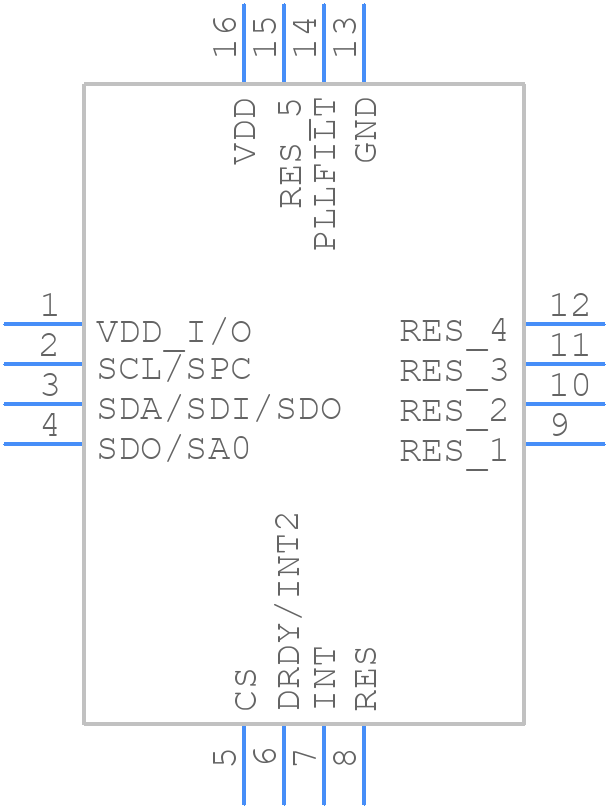

Symbol
L3G4200D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L3G4200D - STMicroelectronics PCB footprint - Other - Other - LGA-16L(4x4x1.1MM)
click to zoom
3D Models
L3G4200D - STMicroelectronics - 3D model - Other - LGA-16L(4x4x1.1MM)
click to zoom

L3G4200D Details

  • Manufacturer Part Number:

    L3G4200D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    MOTION SENSOR

  • JESD-30 Code:

    S-PBGA-BU16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFLGA

  • Package Equivalence Code:

    LGA16,4X4,26

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

L3G4200D Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply VDD (power supply) and then VLOGIC (logic voltage). This ensures that the internal voltage regulators are properly initialized.
  • The self-test function is enabled by setting the ST1 and ST2 bits in the CTRL_REG4 register. During self-test, the gyroscope outputs a predefined pattern that can be used to verify the device's functionality.
  • The bandwidth selection bits (BW_SEL) in the CTRL_REG1 register allow the user to trade off between noise performance and bandwidth. A lower bandwidth setting reduces noise but also limits the maximum measurable angular rate.
  • The output data from the L3G4200D is in 16-bit two's complement format, with a sensitivity of 8.75 mdps/LSB (least significant bit). To convert the output data to angular rate values, multiply the output value by the sensitivity and divide by 32768 (2^15).
  • To minimize noise and ensure optimal performance, it is recommended to place the L3G4200D near the center of the PCB, away from high-current paths and noise sources. Use a solid ground plane and keep the device's pins as short as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L3G4200D Overview

Use the download button to access the L3G4200D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L3G42, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
