L4931CD80-TR - STMicroelectronics

Description: LDO Regulator 8V 0.25A SOIC8 L4931CD80-TR, Low Dropout Voltage Regulator, 0.25A, 8 V ±2%, 8-Pin SO

Download L4931CD80-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

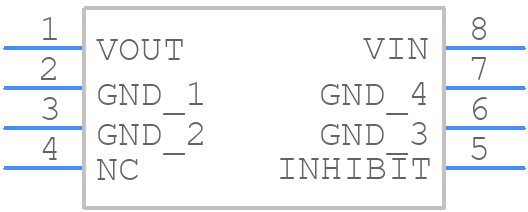

L4931CD80-TR - STMicroelectronics - PCB symbol
