L4938ED013TR - STMicroelectronics

Description: Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 100mA, 400mA 20-SO

Download L4938ED013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

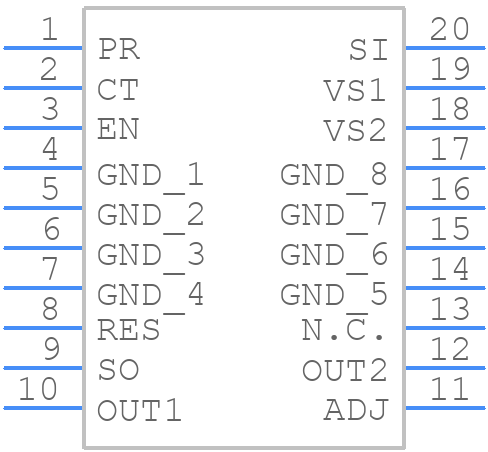

L4938ED013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4938ED013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20 mechanical data
click to zoom
3D Models
L4938ED013TR - STMicroelectronics - 3D model - Small Outline Packages - SO-20 mechanical data
click to zoom

L4938ED013TR Details

  • Manufacturer Part Number:

    L4938ED013TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.4 V

  • Dropout Voltage1-Nom:

    0.6 V

  • Dropout Voltage2-Max:

    0.6 V

  • Input Voltage Absolute-Max:

    28 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Line Regulation-Max:

    0.02%

  • Load Regulation-Max:

    0.05%

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Current2-Max:

    0.4 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Output Voltage2-Max:

    27 V

  • Output Voltage2-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    4%

  • Width:

    7.5 mm

L4938ED013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN1026, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Follow the recommended soldering profile in the datasheet, and ensure the PCB is designed with a sufficient thermal relief pattern to prevent thermal damage. Additionally, use a solder paste with a high melting point and a reflow oven with a controlled temperature profile.
  • The maximum allowed voltage drop is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the voltage drop across the input and output pins below 1V to ensure stable operation and minimize power loss.
  • While the L4938ED013TR is rated for operation up to 125°C, it's not recommended to use it in environments above this temperature without proper derating and thermal management. Consult with STMicroelectronics or a thermal expert to determine the feasibility of using the device in high-temperature applications.
  • Start by verifying the input voltage, output voltage, and current consumption using an oscilloscope and a multimeter. Check the PCB layout and component placement for any thermal or electrical issues. Consult the datasheet and application notes for troubleshooting guidelines, and contact STMicroelectronics' technical support if necessary.
