L4938ND - STMicroelectronics

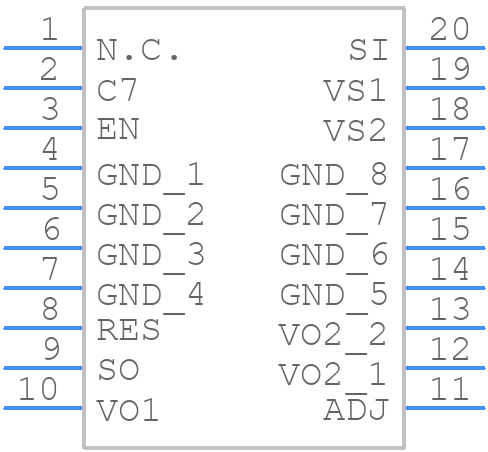

L4938ND Details

• Manufacturer Part Number:

  L4938ND

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOP-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Adjustability:

  FIXED/ADJUSTABLE

• Dropout Voltage1-Max:

  0.4 V

• Dropout Voltage1-Nom:

  0.2 V

• Dropout Voltage2-Max:

  0.6 V

• Input Voltage Absolute-Max:

  28 V

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e0

• Length:

  12.8 mm

• Line Regulation-Max:

  0.02%

• Load Regulation-Max:

  0.05%

• Load Regulation-Max(%):

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  20

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -55 °C

• Output Current1-Max:

  0.05 A

• Output Current2-Max:

  0.5 A

• Output Voltage1-Max:

  5.1 V

• Output Voltage1-Min:

  4.9 V

• Output Voltage1-Nom:

  5 V

• Output Voltage2-Max:

  20 V

• Output Voltage2-Min:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  2.65 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  2%

• Width:

  7.5 mm
