L4960 - STMicroelectronics

Description: L4960, Switching Regulator, Buck Controller,, Adjustable, 5.1 → 40 V, 150 kHz, 7-Pin HEPTAWATT V

Download L4960 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

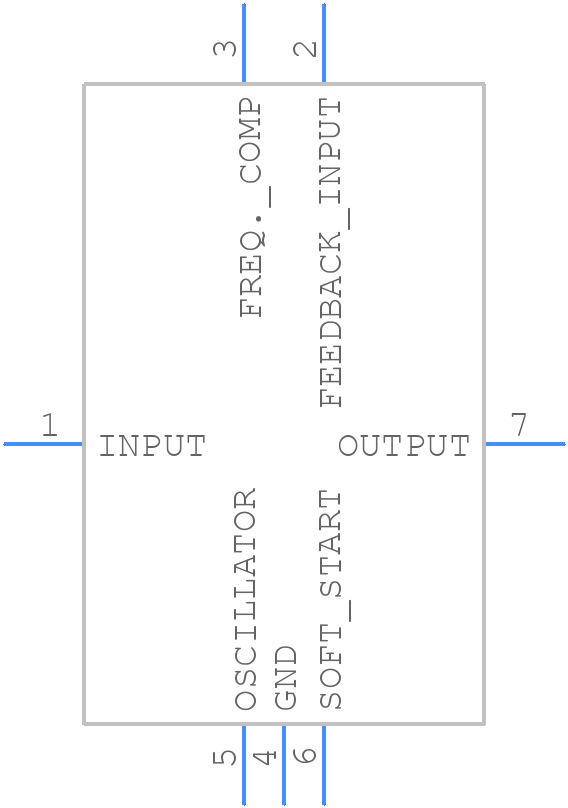

L4960 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4960 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Heptawatt V
click to zoom
3D Models
L4960 - STMicroelectronics - 3D model - Transistor Outline, Vertical - Heptawatt V
click to zoom

L4960 Details

  • Manufacturer Part Number:

    L4960

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    HEPTAWATT-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    46 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    35 V

  • JESD-30 Code:

    R-PZFM-T7

  • JESD-609 Code:

    e3

  • Length:

    10.225 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP7,.2,.1TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    19.7 mm

  • Supply Current-Max (Isup):

    40 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.8 mm

L4960 Frequently Asked Questions (FAQs)

  • The L4960 can handle input voltages up to 40V, but it's recommended to keep it below 36V for optimal performance and reliability.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The EN (Enable) pin is used to enable or disable the regulator. When EN is high, the regulator is enabled, and when EN is low, the regulator is disabled. This pin can be used to implement power sequencing or to shut down the regulator when not in use.
  • To ensure stability, follow the layout guidelines in the datasheet, use a suitable output capacitor, and ensure that the input capacitor is properly sized. Additionally, avoid using long traces and minimize the distance between the regulator and the output capacitor.
  • The L4960 can deliver up to 3A of output current, but this depends on the input voltage, output voltage, and ambient temperature. Be sure to check the datasheet for the specific current rating at your operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L4960 Overview

Use the download button to access the L4960 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Switching Regulator or Controllers
