Part Image

L4963W - STMicroelectronics

Description: L4963W, Switching Regulator, Buck Controller,, Adjustable, 5.1 to 36V, 79kHz, 18, 20-Pin Power PDIP

Download ECAD Model

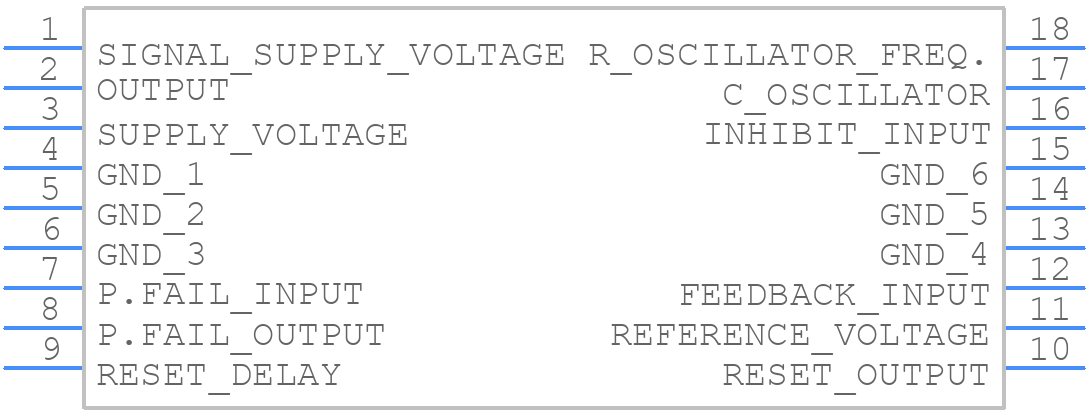

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

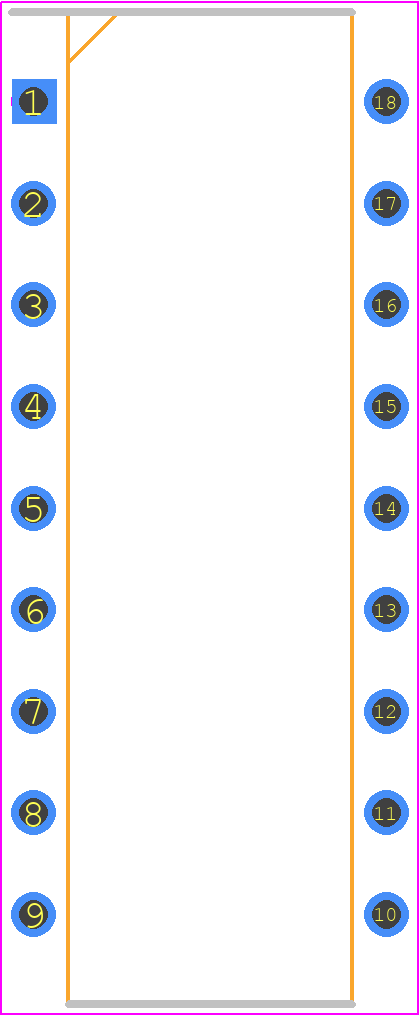

L4963W - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18_2020
click to zoom

3D Models

L4963W - STMicroelectronics  - 3D model - Dual-In-Line Packages - DIP-18_2020
click to zoom

L4963W Details

  • Manufacturer Part Number:

    L4963W

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    POWER, PLASTIC, DIP-18

  • Pin Count:

    18

  • Reach Compliance Code:

    not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1980-01-04

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    7.35

  • Samacsys Modified On:

    2022-07-08 14:47:23

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    46 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    30 V

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Subcategory:

    Switching Regulator or Controllers

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    83 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

Risk Rank: Design Risk

L4963W — STMicroelectronics
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

L4963W Overview

Use the download button to access the L4963W schematic symbol, PCB footprint, and 3D model.
L4963W by STMicroelectronics has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like L4963, or try a keyword search, such as Switching Regulator or Controllers
