L4973D3.3-013TR - STMicroelectronics

Description: 3.5 A step down switching regulator

Download L4973D3.3-013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

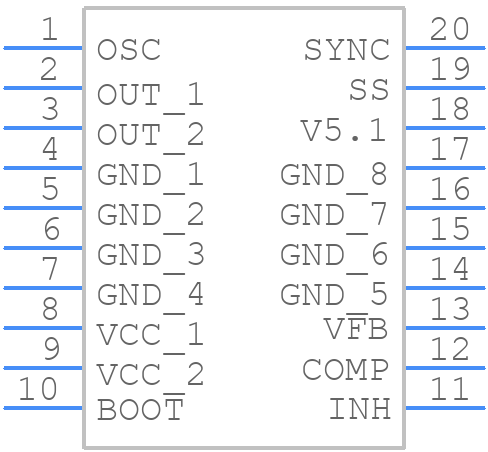

L4973D3.3-013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4973D3.3-013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20 mechanical data
click to zoom
3D Models
L4973D3.3-013TR - STMicroelectronics - 3D model - Small Outline Packages - SO-20 mechanical data
click to zoom

L4973D3.3-013TR Details

  • Manufacturer Part Number:

    L4973D3.3-013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.1

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current-Max:

    5.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    300 kHz

  • Technology:

    BCDMOS

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

L4973D3.3-013TR Frequently Asked Questions (FAQs)

  • The maximum input voltage is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To ensure stable and accurate output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF). Also, ensure the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum output current is 1.5A, but it's recommended to keep it below 1A for optimal performance and reliability. Exceeding the maximum output current may lead to overheating and reduced lifespan.
  • To protect the device from overheating, ensure good thermal conduction by using a heat sink or a thermal pad, and keep the device away from high-temperature sources. Also, avoid operating the device at maximum output current for extended periods.
  • The L4973D3.3-013TR is rated for operation up to 125°C, but it's recommended to keep the junction temperature below 115°C for optimal performance and reliability. Use a heat sink or thermal pad to ensure good thermal conduction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L4973D3.3-013TR Overview

Use the download button to access the L4973D3.3-013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L4973, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
