L4981B - STMicroelectronics

Description: Current mode PF corrector,L4981B 5.1V

Download L4981B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

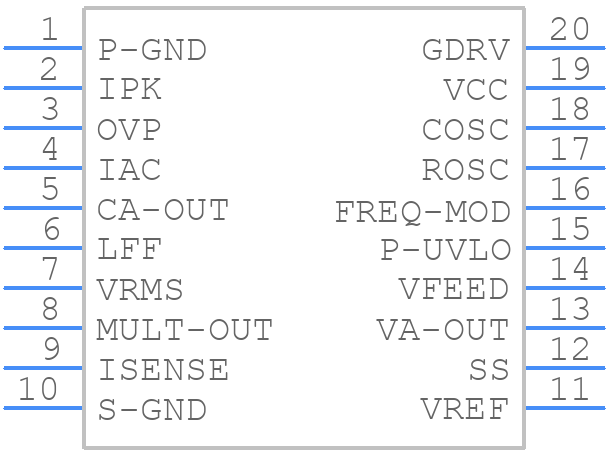

L4981B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4981B - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20_2
click to zoom
3D Models
L4981B - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP20_2
click to zoom

L4981B Details

  • Manufacturer Part Number:

    L4981B

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    19.5 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.93 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    115 kHz

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L4981B Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the L4981B is 60V, but it's recommended to keep it below 50V for reliable operation.
  • The inductor value depends on the output current, switching frequency, and input voltage. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH for the L4981B). You can also use online inductor selection tools or consult with an applications engineer.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. Choose a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum input voltage. A 22nF capacitor is a good starting point.
  • Ensure good thermal design by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the component away from heat sources. Monitor the junction temperature (TJ) and adjust the design as needed to keep TJ below 150°C.
  • Keep the power components (L, C, and R) close together to minimize parasitic inductance and capacitance. Place the input and output capacitors close to the IC. Use a solid ground plane and avoid routing high-current traces near sensitive analog signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L4981B Overview

Use the download button to access the L4981B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L4981, or try a keyword search, such as Switching Regulator or Controllers
