L4984D - STMicroelectronics

Description: Power Factor Correction - PFC Current Mode PFC CCM Line Modulated Bi

Download L4984D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

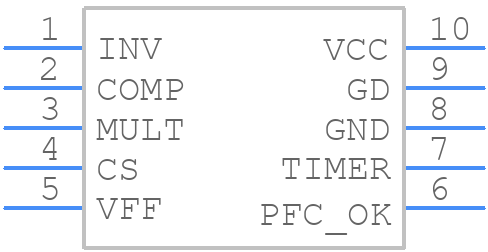

L4984D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4984D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP10
click to zoom
3D Models
L4984D - STMicroelectronics - 3D model - Small Outline Packages - SSOP10
click to zoom

L4984D Details

  • Manufacturer Part Number:

    L4984D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    22.5 V

  • Input Voltage-Min:

    10.3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP10,.25,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

L4984D Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the L4984D is 28V, but it's recommended to keep it below 24V for reliable operation.
  • The inductor value depends on the output current, switching frequency, and input voltage. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH for the L4984D). You can also use online inductor selection tools or consult with an experienced engineer.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. Choose a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum input voltage. A 22nF capacitor is a good starting point.
  • Ensure good thermal design by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the component away from heat sources. Monitor the junction temperature (TJ) and adjust the design as needed to keep TJ below 150°C.
  • The minimum ESR required for the output capacitor depends on the output current and ripple requirements. A good starting point is to use an output capacitor with an ESR of 0.1 ohms or less.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L4984D Overview

Use the download button to access the L4984D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L4984, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
