L4985A - STMicroelectronics

Description: CCM PFC controller with High Voltage start-up

Download L4985A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

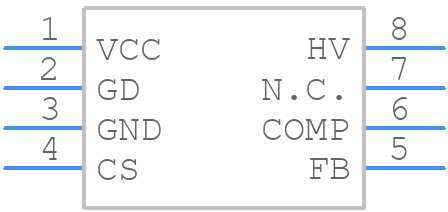

L4985A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4985A - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_ 2021-1
click to zoom
3D Models
L4985A - STMicroelectronics - 3D model - Small Outline Packages - SO-8_ 2021-1
click to zoom

L4985A Details

  • Manufacturer Part Number:

    L4985A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER
