L4986A - STMicroelectronics

Description: CCM PFC controller with high voltage startup

Download L4986A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

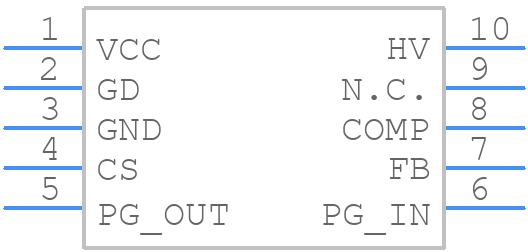

L4986A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L4986A - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP 10
click to zoom
3D Models
L4986A - STMicroelectronics - 3D model - Small Outline Packages - SSOP 10
click to zoom

L4986A Details

  • Manufacturer Part Number:

    L4986A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24.5 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G10

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.25,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    4.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    71 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
