L5050STR - STMicroelectronics

Description: Single and dual isolated 5 V low drop linear voltage regulators for automotive application

Download L5050STR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

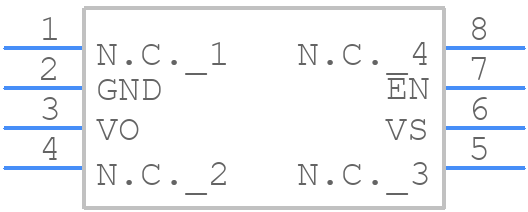

Symbol
L5050STR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5050STR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
L5050STR - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

L5050STR Details

  • Manufacturer Part Number:

    L5050STR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.2

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Input Voltage Absolute-Max:

    40 V

  • Input Voltage-Max:

    31 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.05%

  • Load Regulation-Max:

    0.055%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

L5050STR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor should be selected based on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating that is at least 1.5 times the input voltage. Additionally, the capacitor should have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
  • The maximum ambient temperature for the L5050STR is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure proper thermal management, such as providing adequate airflow or using a heat sink, to prevent overheating and ensure reliable operation.
  • Yes, the L5050STR is designed to withstand vibrations up to 10g peak acceleration, making it suitable for use in industrial and automotive applications. However, it's essential to ensure that the PCB is properly secured and that the components are properly soldered to prevent mechanical stress and vibration-induced failures.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4553, which includes a step-by-step approach to identifying and resolving common issues, such as output voltage regulation, input voltage range, and thermal management. Additionally, engineers can use oscilloscopes and other diagnostic tools to analyze the circuit behavior and identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5050STR Overview

Use the download button to access the L5050STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5050, or try a keyword search, such as Linear Regulator ICs
