STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
The input capacitor values depend on the input voltage, output voltage, and output current. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN4553 and perform simulations to determine the optimal capacitor values for your specific design.
The maximum ambient temperature for the L5300GJ is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. It's essential to ensure proper thermal management, such as using a heat sink or providing adequate airflow, to maintain reliable operation within the specified temperature range.
Yes, the L5300GJ is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to follow the recommended design guidelines, ensure proper thermal management, and perform thorough testing to guarantee reliable operation in these demanding environments.
To troubleshoot common issues with the L5300GJ, start by verifying the input voltage, output voltage, and output current. Check for proper component placement, routing, and thermal management. Consult the application note AN4553 and the datasheet for guidance on troubleshooting and debugging techniques. If the issue persists, contact STMicroelectronics' technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L5300GJ Overview

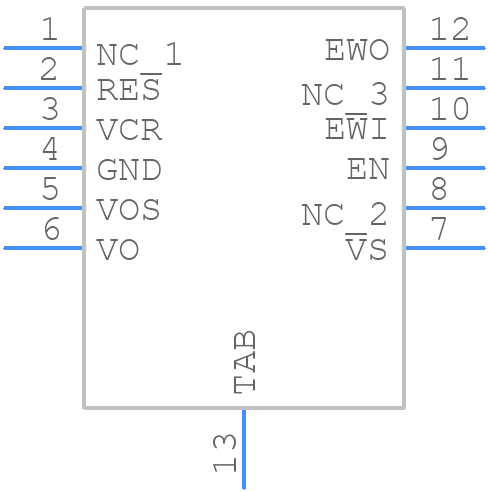

Use the download button to access the L5300GJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5300,
or try a keyword search, such as Linear Regulator ICs
