L5956 - STMicroelectronics

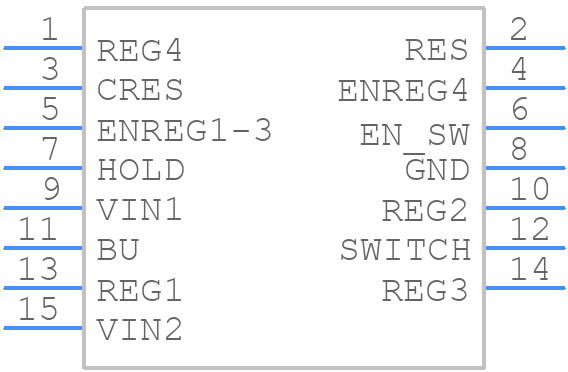

L5956 Details

• Manufacturer Part Number:

  L5956

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

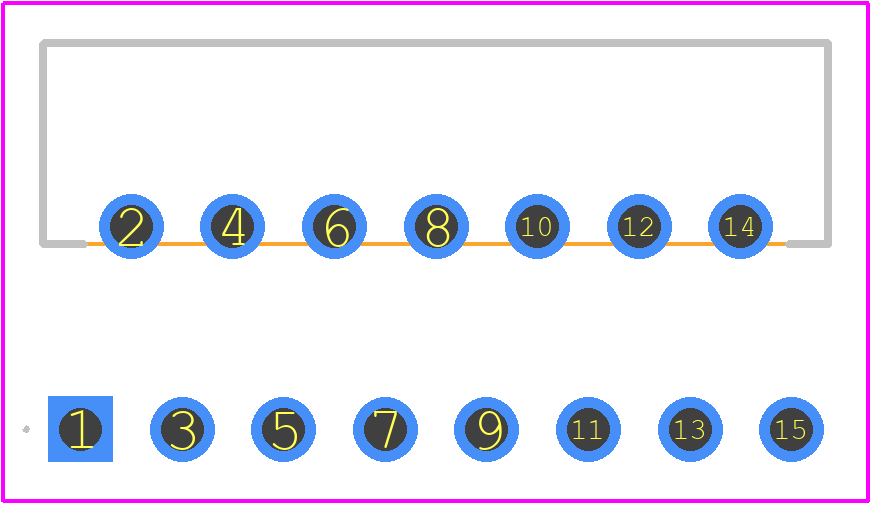

• Part Package Code:

  ZFM

• Package Description:

  MULTIWATT-15

• Pin Count:

  15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  3

• Dropout Voltage1-Max:

  0.6 V

• Dropout Voltage2-Max:

  1.5 V

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  9 V

• JESD-30 Code:

  R-XZFM-T15

• JESD-609 Code:

  e3

• Length:

  19.6 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  4

• Number of Terminals:

  15

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -55 °C

• Output Current1-Max:

  0.5 A

• Output Current2-Max:

  0.3 A

• Output Voltage1-Max:

  9 V

• Output Voltage1-Min:

  8 V

• Output Voltage1-Nom:

  8.5 V

• Output Voltage2-Max:

  5.25 V

• Output Voltage2-Min:

  4.75 V

• Output Voltage2-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  ZFM

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  21 mm

• Surface Mount:

  NO

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG

• Voltage Tolerance-Max:

  5.9%

• Width:

  5 mm
