L5972D013TR - STMicroelectronics

Description: STMICROELECTRONICS - L5972D013TR. - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 4.4V-36Vin, 1.235V-35Vout, 2Aout, SOIC-8

Download L5972D013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

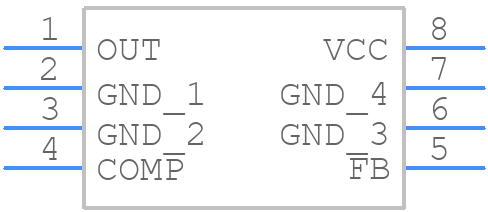

Symbol
L5972D013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5972D013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2022
click to zoom
3D Models
L5972D013TR - STMicroelectronics - 3D model - Small Outline Packages - SO-8_2022
click to zoom

L5972D013TR Details

  • Manufacturer Part Number:

    L5972D013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    280 kHz

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

L5972D013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet, and to ensure good airflow around the device.
  • STMicroelectronics recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 10V for the input and output capacitors, with a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
  • To protect the device from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a voltage monitor IC to detect and respond to voltage faults, and to add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to the design.
  • The recommended startup sequence for the L5972D013TR is to first apply the input voltage, then enable the device by setting the EN pin high, and finally apply the output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5972D013TR Overview

Use the download button to access the L5972D013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5972, or try a keyword search, such as Switching Regulator or Controllers
