Part Image

L5973D - STMicroelectronics

Description: Switching Reg,2.5A,4-36Vin,HSOP8 STMicroelectronics L5973D Step-Down Switching Regulator 2A, Adjustable, 1.235 → 35 V HSOP-EP, 8-Pin

Download L5973D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

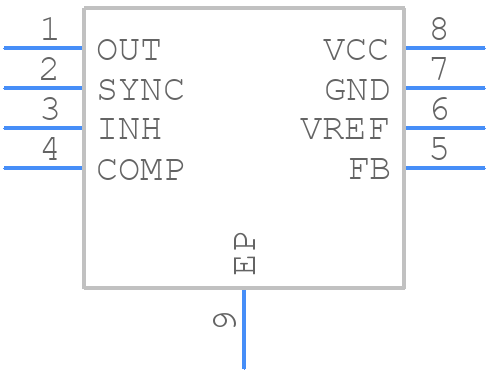

L5973D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5973D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HSOP-8-ren1
click to zoom
3D Models
L5973D - STMicroelectronics - 3D model - Small Outline Packages - HSOP-8-ren1
click to zoom

L5973D Details

  • Manufacturer Part Number:

    L5973D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Qualification Status:

    Not Qualified

L5973D Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the L5973D is 30V, but it's recommended to keep it below 28V for reliable operation.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor, and add a compensation network (Rc and Cc) as described in the datasheet.
  • The minimum input voltage required for the L5973D to operate is 6.5V, but it's recommended to keep it above 7V for reliable startup.
  • The L5973D is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage as temperature increases to ensure reliable operation.
  • Use an external current sense resistor (Rcs) and a thermal shutdown circuit to protect the L5973D from overcurrent and overheating. Also, ensure good thermal design and heat sinking.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5973D Overview

Use the download button to access the L5973D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5973, or try a keyword search, such as Switching Regulator or Controllers
