- Part Number L5987TR
- Manufacturer STMicroelectronics
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - VFQFPN8 (3 x 3 x 1.08 mm) package mechanical data-
- Released Date Sep 1, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L5987TR Details
-
Manufacturer Part Number:
L5987TR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Package Description:
3 X 3 MM, 1.08 MM HEIGHT, ROHS COMPLIANT, VFQFP-8
-
Pin Count:
8
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
STMicroelectronics
L5987TR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
-
The selection of the inductor depends on the specific requirements of your application, including the input voltage, output voltage, and current. STMicroelectronics provides a list of recommended inductors in the datasheet, and you can also use online inductor selection tools or consult with an applications engineer for guidance.
-
The maximum junction temperature of the L5987TR is 150°C, but it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
-
Yes, the L5987TR is rated for operation up to 125°C, but you should ensure that the device is properly heatsinked and that the thermal design is adequate for the specific application. Consult the datasheet and application notes for guidance on thermal design and derating.
-
STMicroelectronics provides a troubleshooting guide in the application note AN4553, which includes steps to identify and resolve common issues such as oscillations, instability, and overvoltage protection. You can also consult with an applications engineer or seek support from STMicroelectronics' technical support team.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L5987TR Overview

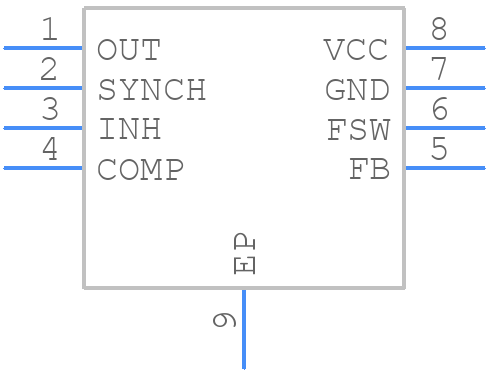

Use the download button to access the L5987TR schematic symbol, PCB footprint, and 3D model.
