L6364Q - STMicroelectronics

Description: Sensor Interface Dual channel transceiver IC for SIO and IO-Link sensor applications

Download L6364Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

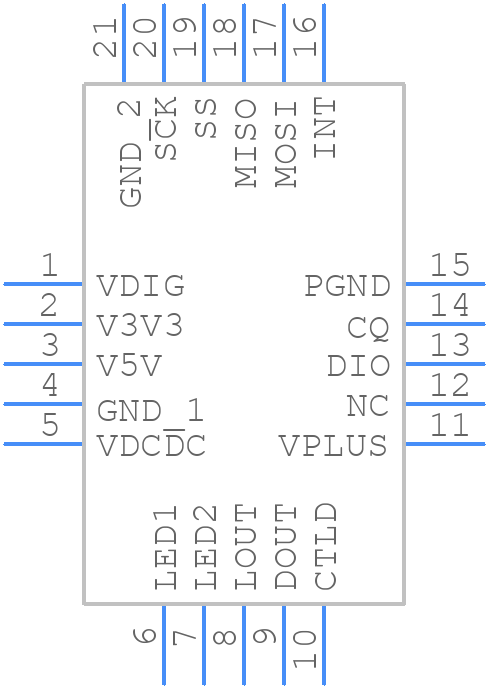

L6364Q - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6364Q - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 20L
click to zoom
3D Models
L6364Q - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN 20L
click to zoom

L6364Q Details

  • Manufacturer Part Number:

    L6364Q

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-08-11

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm
