L6370QTR - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 2.5A 48-QFN (7x7) 9.5V ~ 35V 100mOhm -25°C ~ 125°C (TJ)

Download L6370QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

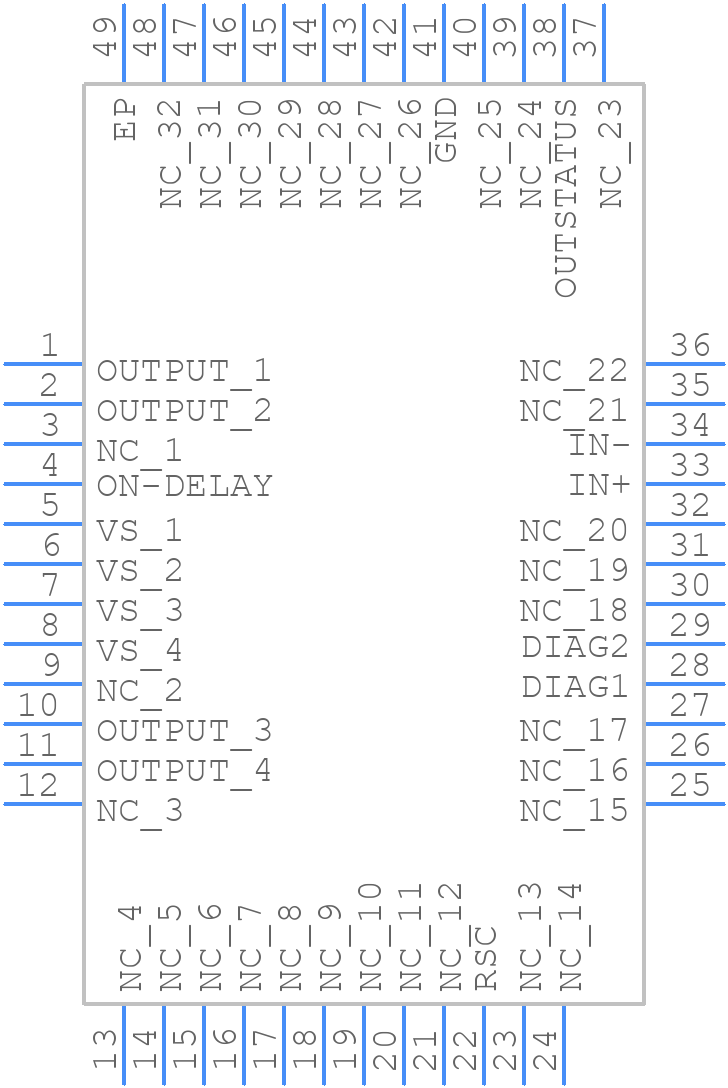

L6370QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6370QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN48(7 x 7 x 1.0 mm)
click to zoom
3D Models
L6370QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN48(7 x 7 x 1.0 mm)
click to zoom

L6370QTR Details

  • Manufacturer Part Number:

    L6370QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

L6370QTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help with the selection process.
  • The maximum junction temperature of the L6370QTR is 150°C, as specified in the datasheet. It's essential to ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliability.
  • The L6370QTR is designed for high-voltage applications, with a maximum input voltage of 60V. However, it's essential to ensure that the device is properly configured and protected to handle the high voltage, and that the application meets the safety and regulatory requirements.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5323, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify and resolve issues with the device.
