L6386ADTR - STMicroelectronics

Description: HV High and low side driver with embedded comparator and bootstrap diode

Download L6386ADTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

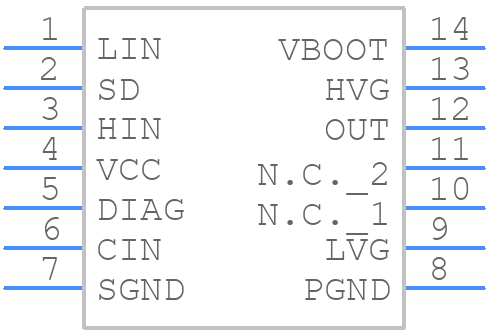

L6386ADTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6386ADTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-14-1
click to zoom
3D Models
L6386ADTR - STMicroelectronics - 3D model - Small Outline Packages - SO-14-1
click to zoom

L6386ADTR Details

  • Manufacturer Part Number:

    L6386ADTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Manufacturer Package Code:

    SO-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    0.65 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    17 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    3.9 mm

L6386ADTR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the L6386ADTR is 100 kHz, but it can be adjusted up to 500 kHz with an external resistor.
  • The bootstrap capacitor (CBOOT) value depends on the switching frequency, output voltage, and input voltage. A general rule of thumb is to use a capacitor with a value between 10 nF to 100 nF. However, it's recommended to consult the application note AN4571 from STMicroelectronics for a more detailed calculation.
  • The EN (enable) pin is used to enable or disable the L6386ADTR. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement a shutdown function or to reduce power consumption when the device is not in use.
  • The output voltage of the L6386ADTR is determined by the resistive divider formed by RFB1 and RFB2. The output voltage can be calculated using the formula: VOUT = VREF x (1 + RFB2/RFB1), where VREF is the internal reference voltage (typically 2.5 V).
  • The maximum input voltage that the L6386ADTR can handle is 65 V. However, it's recommended to operate the device within the recommended input voltage range of 8 V to 60 V for optimal performance and reliability.
