Part Image

L6388ED013TR - STMicroelectronics

Description: STMicroelectronics L6388ED013TR, Dual MOSFET Power Driver 400 (Source) mA, 650 (Sink) mA Half Bridge, Maximum of 17 V

Download ECAD Model

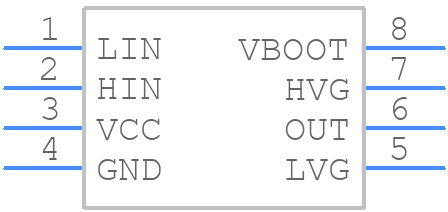

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

L6388ED013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_
click to zoom

3D Models

L6388ED013TR - STMicroelectronics  - 3D model - Small Outline Packages - SO 8_
click to zoom

L6388ED013TR Details

  • Manufacturer Part Number:

    L6388ED013TR

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    1.11

  • Samacsys Modified On:

    2022-07-08 14:47:23

  • YTEOL:

    13.47

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Peak Current Limit-Nom:

    0.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supplies:

    15 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    MOSFET Drivers

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.22 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    3.9 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

L6388ED013TR Overview

Use the download button to access the L6388ED013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6388, or try a keyword search, such as MOSFET Drivers

Parts related to L6388ED013TR

Showing 0 results

L6388ED013TR Alternates

Showing results

Image Part Number Model
Part Image L6388ED STMicroelectronics

HV high and low side driver with embedded bootstrap diode

Part Image L6388D STMicroelectronics

0.65A HALF BRDG BASED MOSFET DRIVER, PDSO8, SO-8
