L6390DTR - STMicroelectronics

Description: High voltage high/ low-side driver

Download L6390DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

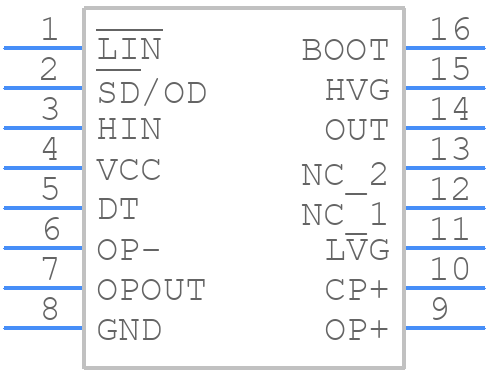

L6390DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6390DTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16_2024
click to zoom
3D Models
L6390DTR - STMicroelectronics - 3D model - Small Outline Packages - SO-16_2024
click to zoom

L6390DTR Details

  • Manufacturer Part Number:

    L6390DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.43 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    12.5 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    580 V

  • Supply Voltage1-Min:

    -9 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

L6390DTR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the bootstrap capacitor is 35V, as specified in the datasheet. However, it's recommended to keep it below 30V to ensure reliable operation.
  • The bootstrap capacitor value depends on the switching frequency, output current, and voltage. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. A higher value can be used for higher output currents or lower switching frequencies.
  • The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown function or to reduce power consumption when the device is not in use.
  • The maximum output current that the L6390DTR can handle depends on the package type, PCB layout, and thermal considerations. As a general guideline, the device can handle up to 2A of output current. However, it's recommended to consult the datasheet and application notes for more detailed information.
  • The recommended layout and placement for the L6390DTR on a PCB involves keeping the high-frequency components (such as the bootstrap capacitor and the drain-source voltage) close to the device, using a solid ground plane, and minimizing the length of the traces. It's also recommended to follow the layout guidelines provided in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6390DTR Overview

Use the download button to access the L6390DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6390, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
