L6395D - STMicroelectronics

Description: L6395D, Motor Driver, 800kHz, 800mW 10 → 20 V, 8-Pin SOIC

Download L6395D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

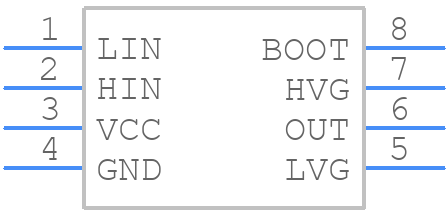

L6395D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6395D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-8_4
click to zoom
3D Models
L6395D - STMicroelectronics - 3D model - Small Outline Packages - ST SO-8_4
click to zoom

L6395D Details

  • Manufacturer Part Number:

    L6395D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.43 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    580 V

  • Supply Voltage1-Min:

    -11 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

L6395D Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the bootstrap capacitor is 35V, as specified in the datasheet. However, it's recommended to keep it below 30V to ensure reliable operation.
  • The minimum bootstrap capacitor value can be calculated using the formula: CBOOT ≥ (IPEAK x tON) / (VIN - VBOOT), where IPEAK is the peak current, tON is the on-time, VIN is the input voltage, and VBOOT is the bootstrap voltage.
  • The SD (Shutdown) pin is used to put the device into a low-power standby mode. To use it, connect the SD pin to a logic low signal (typically 0V) to disable the device, and connect it to a logic high signal (typically VCC) to enable it.
  • The sense resistor value depends on the desired current sensing accuracy and the maximum current to be sensed. A good starting point is to choose a value that gives a voltage drop of around 50-100mV at the maximum current. For example, for a 10A current sense, a 5mΩ sense resistor would give a 50mV voltage drop.
  • The recommended layout and placement for the L6395D and its associated components include: keeping the high-frequency components (such as the bootstrap capacitor and sense resistor) close to the IC, using a ground plane to reduce noise, and keeping the power traces short and wide to reduce inductance and resistance.
